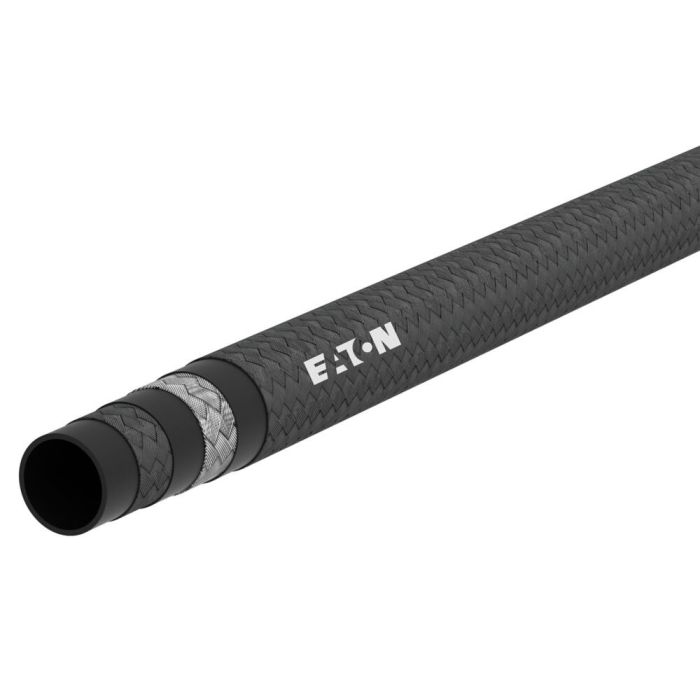

WEATHERHEAD H069 Truck Hose

Ask A Question

Description & Features

The Weatherhead H069 Truck Hose is engineered to provide optimal performance in hydraulic air and lubricating oil applications. Its highly abrasion-resistant cover ensures durability in demanding environments while the hose's construction consisting of three braids of polyester and wire offers superior reinforcement.

Designed to accommodate a small number of hoses for multiple fuel options the Weatherhead H069 is known for its reliability withstanding high temperatures and ensuring consistent performance.

This black hose meets several certifications including SAE J1402 Type-2 SAE 100R5 and ABS and complies with DOT AII standards. It also has an impulse cycle life of 150 000 cycles ensuring long-term use.

The cover material is made of premium polyester while the tube material is nitrile providing excellent resistance to various fluids. Additionally this truck hose features a minimum bend radius of 7.39 and is qualified with hose fittings 069 E 069 D and 247 N.

Supplier Part Number: H06916-250R

MPN: IGH06916-250R

Specifications

Abrasion Resistance
28
Alternate Part Numbers
Alternate Part Number C1HS36
Application
Hydraulics, air and lubricating oil.
Certifications
SAE J1402 Type-2|SAE 100R5|ABS
Color
Black
Compliances
DOT AII
Conductivity
30
Construction
3 Braid
Cover Material
Polyester
Dash Size
-16
Brand
Danfoss (IGS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
FT
Features
Highly abrasion resistant cover|Small number of hoses for many fuel options|Proven reliability with high temperature resistance
ICC
Hoses and Flexible Tubes
Impulse Cycle Life
150000 cycle
Language
English
Lay Line Style
Ink Jet
Minimum Bend Radius
7.39
Minimum Bend Radius
7.39
Minimum Working Temperature
-40
Net Pack Quantity Units
FT
NMFC
70
Product Width
1.23
Qualified Hose Fittings
069 E, 069 D, 247 N
Reinforcement Material
Polyester and Wire
Sub Brand
Weatherhead
Supplier Part Number
H06916-250R
Tube Material
Nitrile
Product Weight
0.46 lbs

Related Documents

Product Questions & Answers (2)

Question by: Rusty C on Jan 21, 2026, 8:02 AM
what fittings are gonna work with this hose? got a truck application and want to make sure i get the right ones before i order
Answer by: Customer Support on Jan 22, 2026, 9:30 PM
Three fitting series are confirmed compatible with this hose: 069 E, 069 D, and 247 N. Stick with one of those and you'll be in good shape. Using fittings outside that qualified list isn't recommended since fit and seal integrity could be compromised.
Question by: Wade J on Nov 3, 2025, 5:01 PM
got a tight spot to route hose on a truck, how sharp can this H069 bend without kinkin it
Answer by: Customer Support on Nov 5, 2025, 12:04 PM
For routing, the published minimum bend radius on the H069 is 7.39. Keeping your bends at or above that radius helps prevent kinking and protects the reinforcement.
