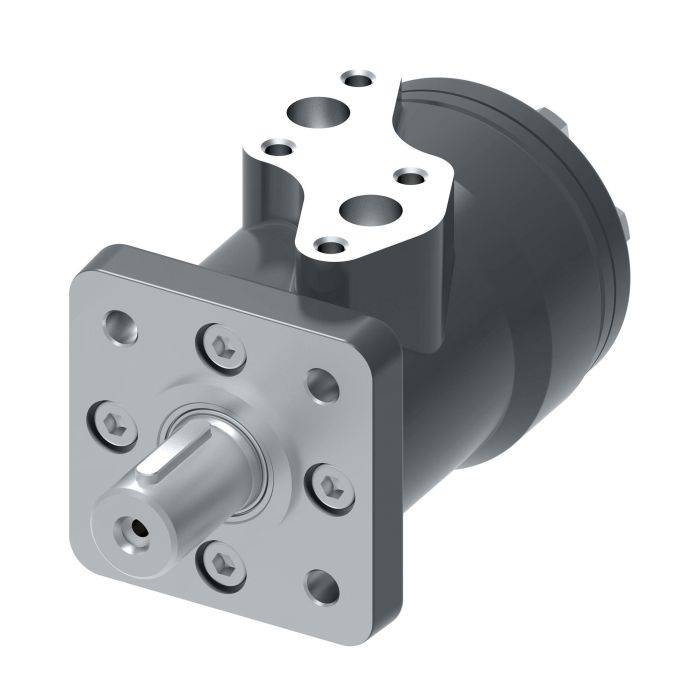

main product photo

DANFOSS / EATON-XLH Series, Spool Valve

Ask A Question

Description & Features

This DANFOSS / EATON-XLH Series spool valve is an ICC low-speed gerotor/geroler type. Constructed of cast iron, it offers efficient performance and is suitable for applications such as aerial work platforms and food processing equipment.

The Xcel sub-brand valve offers higher torque at low speeds and an efficient "same speed" disc valve. It also features an advanced design. It is capable of a 57 litre per minute flow rate and offers a torque rating of 419 newton metres. It has a product width of 5.12.

SKU: 016-0246-002

Supplier Part Number (MPN): 016-0246-002

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
B
Dimensions
8.362 in L x 5.12 in W x 3.7 in H
Frame Size
390
Housing Material
Iron
Mounting Type
4-Bolt Square Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Gerotor
Painted
With Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Series
XLH Series
Shaft Size
1 in Dia
Shaft Type
Straight Square Keyed
Valve Type
Spool

Product Questions & Answers (4)

Question by: Marvin W on Mar 29, 2025, 8:40 AM
what exactly is the XLH series spool valve used for
Answer by: Customer Support on Mar 31, 2025, 1:29 PM
The XLH Series spool valve from DANFOSS/EATON controls hydraulic system flow. It's part of the Xcel XLH line with a spool gerotor setup.
Question by: Glen G on Oct 11, 2025, 5:01 PM
exactly what kind of valve is the xlh series from danfoss
Answer by: Customer Support on Oct 13, 2025, 11:42 AM
The Xcel XLH Series crafted by Danfoss and Eaton features a spool gerotor valve design.
Question by: Wes M on Jun 3, 2025, 6:05 PM
Is this valve able to work with older Eaton gerotor motors or just the newer models in the XLH line?
Answer by: Customer Support on Jun 6, 2025, 9:32 AM
The XLH Series label means it works specifically with Danfoss/Eaton Xcel XLH gerotor motors. I can't say for sure whether it fits older Eaton motor models without more data from the product page. Double-check that your motor's model number aligns with the XLH series to prevent any mismatches.
Question by: Wade R on Nov 21, 2025, 4:16 PM
Is this Danfoss XLH series spool valve the same thing as a gerotor pump or how does it work?
Answer by: Customer Support on Nov 22, 2025, 4:47 PM
This part is a spool gerotor within the Danfoss/Eaton Xcel XLH series, designed to function as a hydraulic spool valve.
