Vane Pump Build Program
Danfoss Vickers vane pumps configured to match your equipment.
The vane pump build program at Hydraulic Supply Co. allows for quick delivery of nearly any Vickers vane pump configuration. By assembling pumps from genuine Danfoss Vickers components, it is possible to supply units that match existing equipment and install correctly the first time.
PROGRAM USAGE
When This Program Is Used
If a standard stocked vane pump will meet the requirement, that is usually the simplest option. The build program is there for the cases where it will not.
Most customers utilize this specialized assembly program when:
How It Works
Identification usually starts with a model code, nameplate information, or photos. Displacement, pressure range, rotation, shaft dimensions, and mounting style are typically enough to determine the correct configuration.
Genuine Components
Pumps are assembled using genuine Danfoss Vickers components and tested before shipment so they are ready to install and run. HSC stocks parts for nearly every combination of Vickers V10 and V20 pumps, including V2010, V2020, V10F, and V20F configurations.
QUICK SHIP program for fixed displacement vane pumps
Available Pump Configurations
Quick ship program for fixed displacement vane pumps built from inventory and shipped in just a few days instead of weeks.
V10 Single Pumps
| Displacements | Mount | Ports | Shafts |
|---|---|---|---|
| 3.3 cm³ (0.20 in³) | SAE A | Pipe | 3/4" Keyed |
| 6.6 cm³ (0.40 in³) | SAE B | SAE | 9T Splined |
| 9.8 cm³ (0.60 in³) | 11T Splined | ||
| 13.1 cm³ (0.80 in³) | |||
| 16.4 cm³ (1.00 in³) | |||
| 19.5 cm³ (1.19 in³) | |||
| 22.8 cm³ (1.39 in³) |

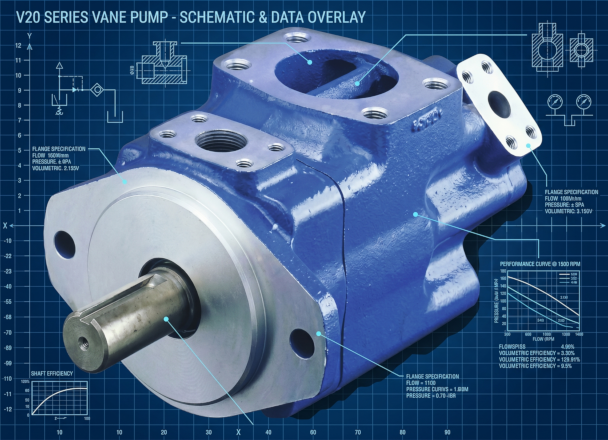

V20 Single Pumps
| Displacements | Mount | Ports | Shafts |
|---|---|---|---|
| 19.5 cm³ (1.19 in³) | SAE A | Pipe | 3/4" Keyed |
| 22.8 cm³ (1.39 in³) | SAE B | SAE | 9T Splined |
| 26.5 cm³ (1.62 in³) | 11T Splined | ||
| 29.7 cm³ (1.81 in³) | 7/8"-13T | ||
| 36.4 cm³ (2.22 in³) | 9T Short | ||
| 39.0 cm³ (2.38 in³) | |||
| 42.4 cm³ (2.59 in³) |
V2010 & V2020 Double Pumps
Double pumps with a V20 displacement for the front section, and a V10 or V20 displacement for the rear section.
V10F & V20F Pumps
V10 and V20 pumps configured with a flow control and fixed relief valve built directly into the rear cover.
25VQ, 35VQ, 45VQ Pumps
Larger displacement vane pumps ranging from 40.2 cm³ (2.45 in³) up to 193.4 cm³ (11.80 in³).
M-Series Vane Motors
Selected displacements for 25M, 35M, 45M, and 50M vane motors are also available through the build program.
Vane Pump Build Program Flyer
PDF • Overview & Specifications
HANDS-ON KNOWLEDGE
Experience That Matters
Vane pumps are sensitive to internal tolerances and correct configuration. Small differences in cartridge components, shaft fit, or rotation can affect noise, efficiency, and service life.
Hydraulic Supply Co. has long-standing experience working with Danfoss and Vickers products and is one of the leading fluid power distributors supporting these pump lines.
That level of involvement means regular hands-on work with these components, familiarity with common industrial applications, and direct access to the parts and technical resources needed to configure pumps correctly. For customers, that usually translates into faster identification, fewer installation issues, and pumps that perform the way they are expected to in service.
Frequently Asked Questions
When does a vane pump build program make sense?
When you need a pump quickly and don't have time to wait for the typical factory lead time. The program is designed specifically to resolve immediate replacement needs.
Are assembled pumps as reliable as factory units?
Yes. When genuine components are used and the pump is assembled and tested properly by experienced technicians, performance and reliability are comparable to factory-assembled units in normal service.
How long does it take to receive a pump?
Lead time depends on configuration and component availability, but assembling pumps locally often reduces delays compared with factory assembly. Typical lead times are only a couple of days, compared to weeks from the factory.
What information helps speed up the quoting process?
Providing the existing model number, displacement, rotation direction, shaft type, and mounting style will allow our team to quickly identify and quote the correct replacement configuration.
Request a Quote
Our technical team will review your request and follow up promptly.
