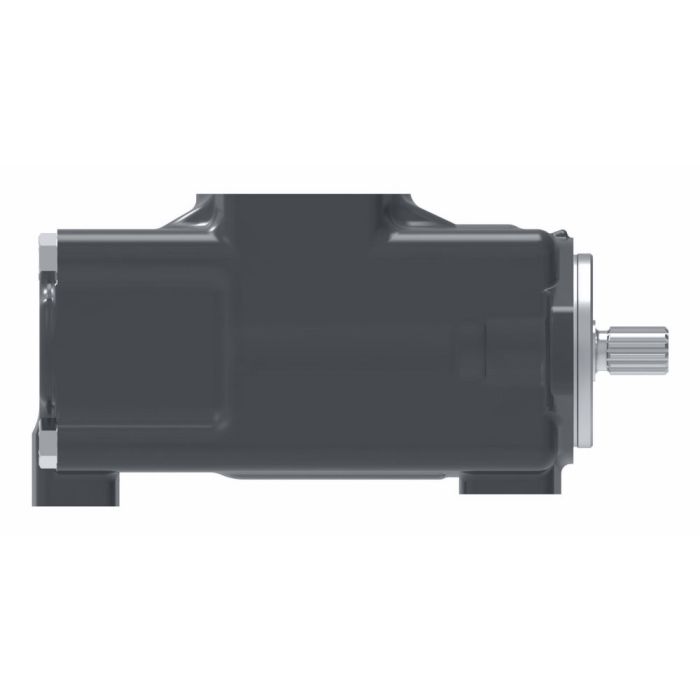

VICKERS-4535V66A38 86AA20 260

Ask A Question

Description & Features

The Vickers 4535V Series Vane Pump is engineered for high-demand industrial applications, offering a robust solution for sectors such as plastics machinery, die casting, and marine use. Constructed from durable cast iron, this pump ensures longevity and reliability in demanding environments. Its innovative intra-vane cartridge design reduces noise while delivering excellent volumetric efficiency, making it a preferred choice for machine tools and primary metal processing.

With a significant flow rate of 121.23 liters per minute, the VICKERS-4535V66A38 86AA20 260 pump is optimized for performance across a range of applications, including pulp and paper processing and oil and gas industries. The absence of a seal material simplifies maintenance, while the pump's compact width of 8.38 inches allows for versatile installation options. Backed by Vickers' reputation for quality, this pump is a reliable component for enhancing operational efficiency.

SKU: 02-102975-1

Supplier Part Number (MPN): 02-102975-1

Specifications

Brand
Vickers by Danfoss
Cartridge Type
20 Design
Dimensions
17.84 in L x 8.38 in W x 7.31 in H
Displacement
8.4 to 11.8 cu-in Shaft, 4.9 to 7.4 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
66 gpm Shaft, 38 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
nmfc
77.50
Outlet Post From CVR End
Outlet 1: Opposite Inlet, Outlet 2: Opposite Inlet
Outlet Size
1-1/4 in, 1-1/2 in
Outlet Type
Threaded
Rotation Direction
Clockwise
Seal Material
Buna-N
Seal Type
Standard
Segment Code
A
Series
4535 Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (2)

Question by: Freddie H on Apr 22, 2025, 6:33 AM
got a press machine that runs pretty steady, is this 4535V pump the kind folks use for that or is it more for something else
Answer by: Customer Support on Apr 23, 2025, 8:15 AM
In day to day industrial work, the 4535V Series vane pump is commonly used on press machines and other heavy-use equipment like plastics machinery, die casting, machine tools, pulp and paper, wood processing, oil and gas, and marine systems.
Question by: Janice B on Jul 2, 2025, 4:23 PM
flow rate on this thing is listed in liters, anybody know what that works out to in gallons per minute for a setup running standard U.S. equipment?
Answer by: Customer Support on Jul 4, 2025, 6:23 AM
Running at 121.23 liters per minute puts you right around 32 gallons per minute. That's a solid output for high-demand work, and it lines up well with the kind of flow requirements you'd see in plastics machinery, die casting use, press machines, and similar industrial setups this pump is built for.
