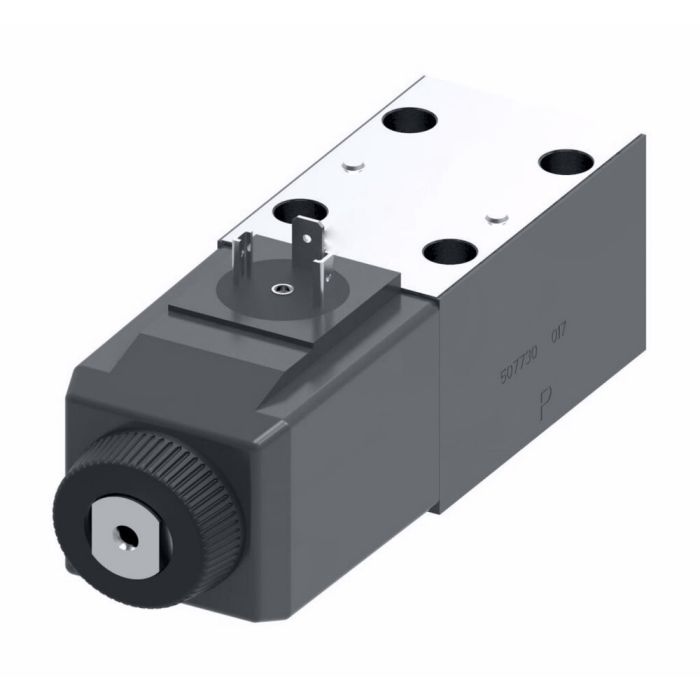

VICKERS DG4V324ALMUH760

Description & Features

Designed for three- or four-way directional control, the Vickers DG4V324ALMUH760 is a single-stage directional control valve built to industry-standard mounting dimensions for straightforward integration into existing hydraulic systems. With a flow rate of 80 litres per minute and a solenoid rated at 30 watts, it is sized for a broad range of medium-duty industrial circuits. The seal material is Buna-N, making it compatible with standard hydraulic fluids in most industrial environments.

This valve is well-suited to demanding application segments including machine tool, press, primary metal, marine/offshore, die casting and foundry, test equipment and simulation, and turbine control, covering wind, steam, and water turbine systems. The DG4V-3 series encompasses thousands of model configurations, giving engineers flexibility when specifying across different circuit requirements. Mounting follows industry-standard surface patterns, reducing the complexity of installation in new or retrofit installations.

SKU: 02-108115

Supplier Part Number (MPN): 02-108115

Specifications

Alternate Part Numbers Alternate Part Number MINO-00900X40314	Application Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)	Brand Danfoss (Power Solutions II LLC)	Brand Vickers	Pack Size 1.00	UOM EA	Features Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications	Flow Rate1 80 litre per minute	ICC IV Directional Control Valves	Language English	Net Pack Quantity Units EA	Product Width 1.80	Seal Material Buna-N	Special Features None	Sub Brand Vickers	Supplier Part Number 02-108115	Wattage 30	Product Weight 3.50 lbs

Product Questions & Answers (2)

Question by: Bobby W on May 31, 2025, 9:23 PM

Flow rate on this one shows 80 litres per minute, that enough for a mid-size press circuit, or is it gonna be borderline?

Answer by: Customer Support on Jun 2, 2025, 10:09 AM

For most medium-duty press applications, 80 litres per minute sits comfortably in range. The DG4V-3 series is explicitly listed for press use alongside other demanding segments like primary metal and die casting, so it's not a stretch to put it to work there. Whether it's borderline depends on your circuit's peak demand, but the valve itself is rated and positioned for that kind of duty.

Question by: Darryl A on May 5, 2025, 12:26 PM

got a medium-duty machine circuit that runs about 80 L/min. is this DG4V324ALMUH760 the right size valve for that

Answer by: Customer Support on May 7, 2025, 8:12 AM

For medium-duty industrial circuits, this valve is sized around an 80 litre per minute flow rate, so it fits that flow range well. It is a single-stage directional control valve meant for three-way or four-way control.
