main product photo

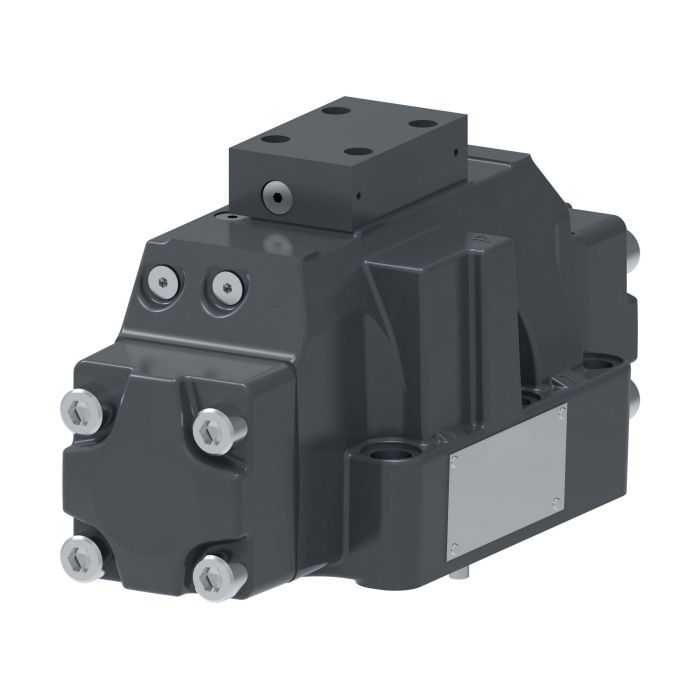

VICKERS-DG5V 5 6C T 10 EN55

Ask A Question

Description & Features

Designed for versatile industrial applications, the Vickers-DG5V 5 6C T 10 EN55 is a robust directional control valve that ensures effective fluid flow management. This valve is ideal for diverse settings such as die casting, machine tool use, and marine environments. Featuring a CETOP 7 subplate mount, it integrates seamlessly into existing systems, providing a reliable main stage operation with a spring-centered design.

This Vickers valve supports three- or four-way directional control, accommodating various operational requirements. Its construction includes durable Buna-N seals, ensuring longevity and optimal performance under demanding conditions. With a flow rate capacity of up to 160 liters per minute, it meets the rigorous demands of primary metals, paper processing, and turbine control applications. The Vickers-DG5V 5 6C T 10 EN55 can be easily mounted on industry-standard surfaces, making it a versatile choice for engineers and technicians.

SKU: 02-109340

Supplier Part Number (MPN): 02-109340

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
10 Series
Dimensions
7.87 in L x 2.86 in W x 6.9 in H
Domestic/Import
Domestic
Ext Pilot Pressure
External
Indicator Light
Without Indicator Light
Int Pilot Drain
Internal
Media
Petroleum Oil
Number of Stages
2
Performance
High
Seal Material
Buna-N
Segment Code
C
Series
DG5V-5 10 Series
Special Features
Directional Valve CETOP 7 Subplate Mounted Spring Centered Main Stage Only
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 6
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Rhonda C on May 31, 2025, 8:53 AM
trying to swap out an old directional valve, is this one the cetop 7 subplate mounted style?
Answer by: Customer Support on Jun 2, 2025, 6:09 AM
The key detail is it is a CETOP 7 subplate mounted directional valve, so it is meant to bolt onto an industry standard CETOP 7 mounting surface.
Question by: Danny M on Jun 3, 2025, 9:07 AM
flow rate on this valve is listed at 160 liters per minute -- is that enough for press or primary metals work, or is it more suited to lighter duty stuff?
Answer by: Customer Support on Jun 5, 2025, 6:09 AM
For press and primary metals applications, 160 liters per minute is a solid working capacity. Those are actually listed use cases for this valve, so it's not just capable on paper. Die casting and turbine control are also on the supported application list, and those tend to be demanding environments. As long as your system requirements fall within that flow ceiling, you're in good shape for the heavier industrial work you're describing.
