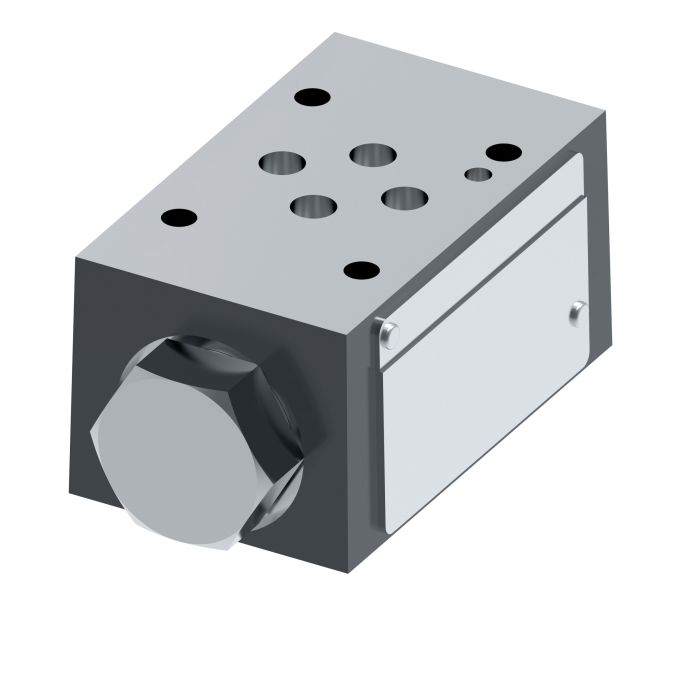

main product photo

VICKERS DGMDC 3 Y AK BK 41

Ask A Question

Description & Features

This Eaton Vickers DGMDC 3 Y AK BK 41 directional control valve is designed for system stacking. It offers reduced installation costs and eliminates external leakage, while boosting resistance to contamination.

With a flow rate of 60 liters per minute, this Vickers valve is suitable for applications such as die casting and foundry, machine tools, marine/offshore, presses, primary metal, paper, test equipment and simulation, and turbine control (wind, steam, water).

Seal material: Buna-N. Width: 1.87.

SKU: 02-109849

Supplier Part Number (MPN): 02-109849

Alternate Part Numbers: DGMDC3YAKBK41

Specifications

Actuator Type
Pressure Operated
Body Material
Iron
Check Location
Line A
Check Location Dual
Line B
Design Series
41 Series
Dimensions
4 in L x 1.87 in W x 1.57 in H
Direction of Flow
Towards Actuator
Domestic/Import
Domestic
igs Only
With igs
Language
English
Material Standard
ANSI B93.7M-D03
Media
Petroleum Oil
Mounting Type
Manifold, Subplate
Nominal Size
#03
Performance
Standard
Seal Material
FKM
Segment Code
C
Series
DGMDC-3 Series
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Troy B on Nov 19, 2025, 7:47 PM
got a systemstak setup already. is this DGMDC-3 41 design valve meant to stack in, or is it some oddball mount?
Answer by: Customer Support on Nov 20, 2025, 8:15 PM
Built for SystemStak assemblies, the DGMDC-3 41 design is intended to be stacked into a manifolded valve package so you can cut down on extra hydraulic connections and help eliminate external leakage.
Question by: Jerry W on Sep 4, 2025, 12:02 PM
What kind of applications is this valve good for? Seems like there's a lot listed.
Answer by: Customer Support on Sep 6, 2025, 6:41 AM
This Vickers directional control valve can be used in a wide range of applications, including die casting, machine tools, marine/offshore equipment, presses, primary metal production, paper mills, test equipment, turbine control systems, and simulation setups.
Question by: Judy B on May 27, 2025, 8:56 AM
flow rate on this valve, is it 60 LPM or is that just the max it'll handle?
Answer by: Customer Support on May 29, 2025, 7:12 AM
60 litres per minute is the rated flow rate for this valve. That figure reflects its operational capacity, not a ceiling you're pushing against in normal use. As long as your system is running at or below that, you're in good shape.
