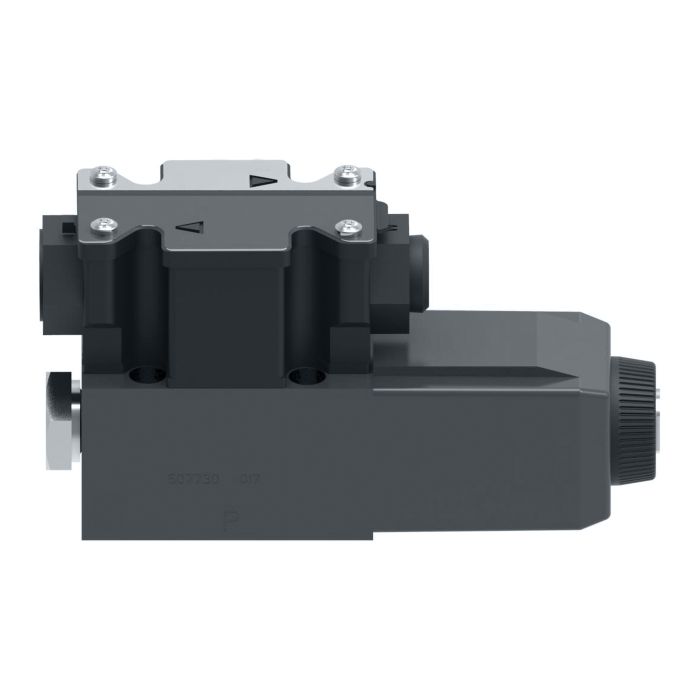

main product photo

Vickers DG4V 3S 0BL M FW B5

Ask A Question

Description & Features

Designed for three- or four-way directional control in demanding industrial hydraulic circuits, the Vickers DG4V 3S 0BL M FW B5 is a single-stage directional control valve built to handle flow rates up to 80 litres per minute. With a solenoid power draw of 30 watts and Buna-N seals, it is suited for systems requiring reliable fluid direction management across a wide range of operating conditions.

This valve mounts easily on industry-standard surfaces, supporting broad compatibility across equipment platforms. Applicable industries include machine tool, press, primary metal, die casting and foundry, marine and offshore, test equipment and simulation, and turbine control, covering wind, steam, and water turbine applications. The extensive model range within the Vickers DG4V-3 series allows this valve to be matched closely to specific circuit requirements.

SKU: 02-109879

Supplier Part Number (MPN): 02-109879

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
60 Series
Dimensions
5.75 in L x 1.8 in W x 3.57 in H
Domestic/Import
Domestic
Electrical Connection
1/2 in NPT Housing Flying Leads
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
Standard
Seal Material
FKM
Series
DG4V-3 60 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 0
Spring Arrangement
Spring Offset End to Center LH
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Sherry H on Jul 16, 2025, 8:49 PM
trying to size a valve for a directional circuit, what kind of flow will this DG4V-3 handle?
Answer by: Customer Support on Jul 18, 2025, 4:27 PM
For capacity, this model is rated up to 80 litres per minute, so it fits circuits where the directional valve needs to pass that level of flow while controlling three or four ways.
Question by: Tony E on May 23, 2025, 10:05 AM
Reckon this'll bolt right up where my old DG4V-3 valve was? Same footprint and all?
Answer by: Customer Support on May 25, 2025, 9:52 AM
For mounting, this DG4V 3S 0BL M FW B5 is designed to fit on industry-standard surfaces, which should make it broadly compatible if you're replacing an existing valve.
