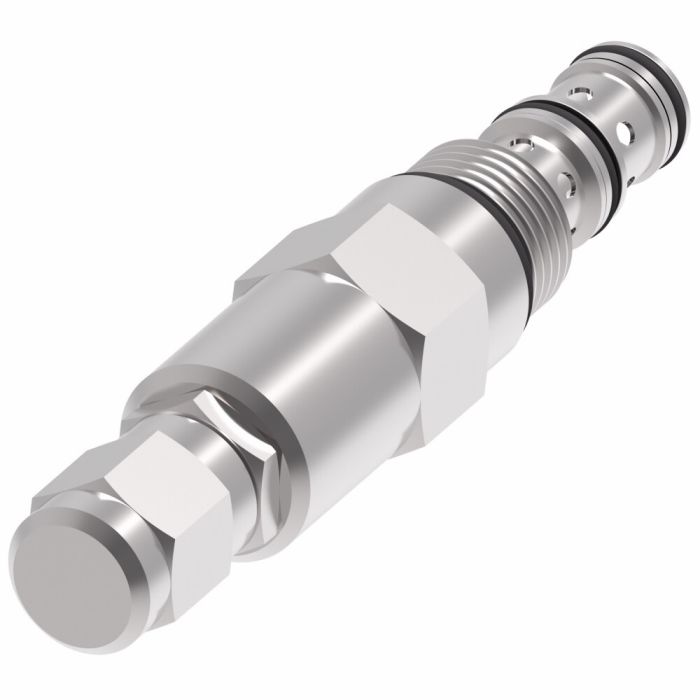

VICKERS PFR2-10-C-0-/0.50

Description & Features

The VICKERS PFR2-10-C-0-/0.50 is an adjustable pressure compensated flow regulator, suitable for a variety of mobile and industrial applications including refuse haulers and harvesters. This Vickers flow control valve offers a reliable, economical and compact solution where flow regulation is required.

This valve is designed to handle a maximum flow rate of 60 liters per minute. It offers a perfect balance of pressure and flow with a maximum pressure of 350 bar (5000 psi) and 350 L/min (92 USgpm) flow rate.

SKU: 02-112877

Supplier Part Number (MPN): 02-112877

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pressure Compensated
Body Material
Aluminum
Dimensions
4.96 in L x 1 in W x 1 in H
Domestic/Import
Import
Flow Rate
10 gpm Regulated, 15 gpm Inlet
Lead Time
60
Mounting Type
Screw-In
Nominal Size
10
Number of Ports/Ways
3-Port
Seal Material
Buna-N
Segment Code
B
Series
PFR2-10 Series
Style
Adjustable Pressure Compensated, Flow Regulator

Product Questions & Answers (2)

Question by: Hugh T on May 3, 2025, 9:14 AM
got a harvester that needs steady flow even when the load changes, is this valve the right kind for that?
Answer by: Customer Support on May 4, 2025, 9:59 AM
Pressure compensated flow regulation is what this unit is built for, so it is meant to hold a set flow rate even as system pressure varies. It is an adjustable flow regulator used in mobile and industrial equipment like harvesters and refuse haulers.
Question by: Cody S on Aug 15, 2025, 7:52 PM
flow rate on this thing tops out at 60 liters per minute, but the specs also mention 350 L/min somewhere -- how do them two numbers fit together?
Answer by: Customer Support on Aug 16, 2025, 8:46 PM
Good catch, and it's worth clearing up. The 350 L/min figure refers to the maximum flow capacity the valve itself can handle passing through it under rated conditions. The 60 liters per minute is the regulated output -- meaning that's the controlled flow this unit is set to deliver after compensation. So the valve can physically handle a lot more fluid moving through the system, but it's holding the working output steady at 60 L/min. That's exactly what a pressure compensated flow regulator does: it keeps your output flow consistent regardless of load changes or pressure swings upstream.
