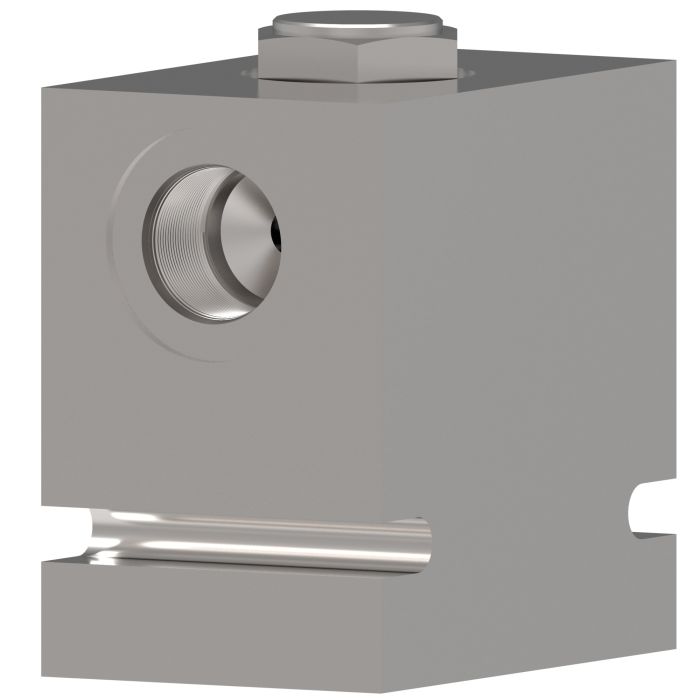

VICKERS CV3 10 P 6T 100

Ask A Question

Description & Features

Designed for demanding mobile and industrial hydraulic circuits, the Vickers CV3 10 P 6T 100 is a poppet-style check valve rated to 350 bar (5,000 psi) with a maximum flow capacity of 227 L/min (60 USgpm). The 3/8" port size and low spring settings make it well suited for applications where minimal backpressure and responsive flow control are priorities.

Part of the Vickers by Danfoss CV3-10/CV13-10 series, this check valve is commonly deployed in harvesters, refuse haulers, and a range of mobile and industrial hydraulic systems. The poppet construction supports high operational efficiency with a rated flow of 76 L/min at this configuration, delivering reliable non-return performance across variable duty cycles.

SKU: 02-113021

Supplier Part Number (MPN): 02-113021

Specifications

Actuator Type
Direct Acting
Body Material
Aluminum
Connection Type
SAE
Dimensions
2.81 in L x 2.5 in W x 1.75 in H
End Type
SAE
Language
English
Mounting Type
Screw-In
Nominal Size
10
Number of Ports/Ways
2-Port
Seal Material
Buna-N
Series
CV3-10 Series
Style
Poppet

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Denise C on Apr 2, 2026, 9:37 PM
got a mobile rig that don’t like much backpressure. is this check valve one of the low-spring ones?
Answer by: Customer Support on Apr 4, 2026, 3:38 PM
For circuits where you want minimal backpressure and quick response, this model is called out with low spring settings and a poppet-style design, so it fits that kind of need.
Question by: Lyle P on Aug 8, 2025, 5:35 PM
What size ports does this check valve have? Just need to make sure it'll fit my setup.
Answer by: Customer Support on Aug 10, 2025, 11:04 AM
It comes with 3/8" ports, so you should be good to go as long as that matches what you're working with.
