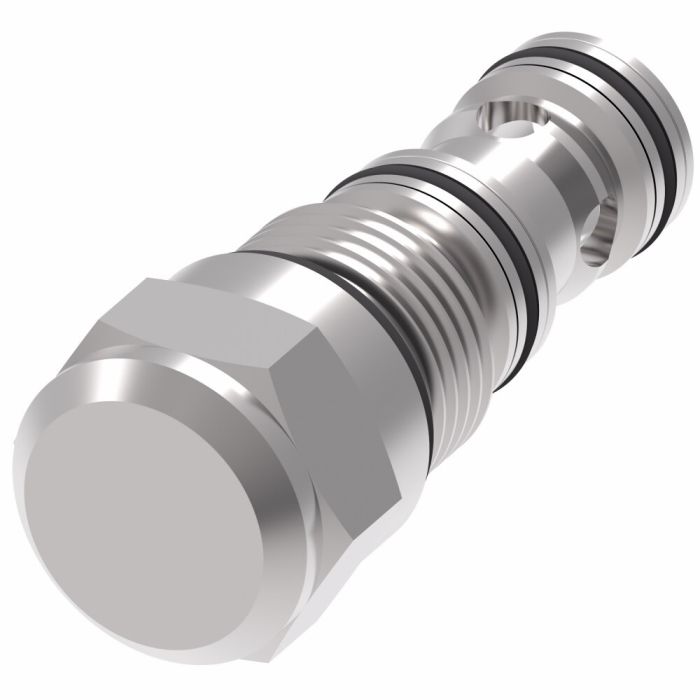

VICKERS DPS2-10-F-F-0-20

Description & Features

Designed for demanding mobile and industrial hydraulic circuits, the Vickers DPS2-10-F-F-0-20 is a spool-style logic element rated for flow up to 60 litres per minute. Part of the Vickers by Danfoss/Eaton DPS2-10 series, it supports system pressures up to 350 bar (5,000 psi) with a maximum series capacity of 400 L/min (100 USgpm), making it well-suited for high-load duty cycles.

Typical applications include harvesters, refuse haulers, and a range of mobile and industrial hydraulic systems where reliable directional or flow control is required. The spool configuration supports integration into manifold-based circuit designs, helping to reduce component count and simplify overall system layout.

SKU: 02-113158

Supplier Part Number (MPN): 02-113158

Specifications

Brand Vickers by Danfoss	Body Material Aluminum	Configuration Normally Open	Dimensions 3-3/4 in L x 1 in W x 1 in H	Domestic/Import Import	Installation Type Screw-In Cartridge	Language English	Number of Ports/Ways 3-Port	Seal Material Buna-N	Series DPS2-10 Series	Style Spool

Similar Products

Model Number	Configuration	Seal Material
02-112713	Normally Closed	Buna-N
02-112750	Normally Closed	Buna-N
02-112831	Normally Closed	FKM
02-112964	Normally Closed	Buna-N
02-113159	Normally Open	Buna-N
02-151006	Normally Closed	Buna-N
02-151021	Normally Open	Buna-N
02-153298	Normally Open	Buna-N
02-161007	Normally Closed	FKM
02-161134	Normally Closed	Buna-N
02-161177	Normally Closed	FKM
02-161369	Normally Closed	Buna-N
02-161467	Normally Closed	FKM
02-171544	Normally Closed	FKM
02-177338	Normally Closed	Buna-N
02-180710	Normally Closed	FKM

Product Questions & Answers (3)

Question by: Norm R on Mar 21, 2026, 5:08 PM

flow rate on this one says 60 L/min but the series max is 400 L/min -- how does that work exactly?

Answer by: Customer Support on Mar 23, 2026, 7:58 AM

Each logic element in the DPS2-10 series has its own individual flow rating, and this particular unit is rated for 60 litres per minute. The 400 L/min figure reflects the maximum capacity the series can handle when multiple elements are arranged together in a manifold-based circuit. So if your application calls for higher total flow, you'd build that up by combining units within the series rather than expecting one element to carry the full load on its own.

Question by: Daryl D on Dec 21, 2025, 8:09 PM

What kind of machines would this logic element typically be used on?

Answer by: Customer Support on Dec 23, 2025, 12:58 PM

This Vickers DPS2-10 series logic element is typically used in harvesters, refuse haulers, and a range of mobile and industrial hydraulic systems.

Question by: Lyle S on Dec 27, 2025, 9:15 AM

got a harvester circuit that sees some pretty heavy work, is this DPS2-10-F-F-0-20 built to handle that kind of pressure?

Answer by: Customer Support on Dec 28, 2025, 2:24 PM

Pressure-wise, it is rated up to 350 bar (5,000 psi) and it is called out for demanding mobile and industrial hydraulic circuits, including harvesters and refuse haulers.
