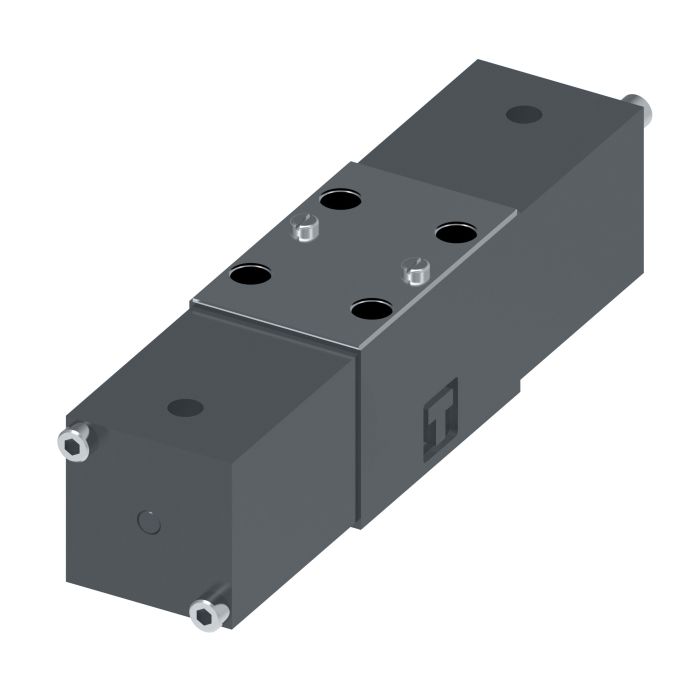

VICKERS DG18V 3 0C P 60

Description & Features

Designed for demanding industrial environments, the Vickers DG18V 3 0C P 60 is a single-stage directional control valve capable of handling flow rates up to 114 litres per minute. It supports three- or four-way directional control configurations and mounts on industry-standard surfaces, simplifying integration into existing hydraulic circuits across a wide range of equipment types.

Buna-N seals provide reliable fluid compatibility in typical hydraulic media applications. The valve is suited for use across a broad spectrum of industries, including machine tool, press, marine and offshore, die casting and foundry, primary metal processing, paper, turbine control, and test and simulation equipment. This breadth of application compatibility reflects the flexibility of the Vickers DG18V platform across varying duty cycles and system requirements.

SKU: 02-119301

Supplier Part Number (MPN): 02-119301

Specifications

Actuator Type Air, Solenoid	Design 60 Series	Dimensions 7.91 in L x 1.81 in W x 1.96 in H	Domestic/Import Domestic	Indicator Light Without Indicator Light	Language English	Manual Override Operator End	Media Petroleum Oil	Number of Stages 1	Performance Standard-Performance	Pilot Source Thread 1/8 in BSP	Seal Material FKM	Series DG18V-3 60 Series	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 0	Spring Arrangement Spring Centered	Surge Suppressor Damper Without Surge Suppressor Damper	Valve Mount Type Subplate/Manifold

Product Questions & Answers (3)

Question by: Ricky W on Oct 31, 2025, 8:25 AM

flow rate on this one is listed at 114 litres per minute -- that good enough for press applications or is it gonna be on the low end for that kind of work?

Answer by: Customer Support on Nov 2, 2025, 6:14 AM

Press applications can vary quite a bit depending on cycle speed and cylinder size, but 114 litres per minute puts this valve well within range for a broad spread of press setups. The DG18V platform was built with press use listed right alongside other heavy-cycle industries like die casting and primary metal processing, so it's not a stretch to say it holds up in that environment. Whether it's enough headroom for your specific system comes down to your actual flow demand, but the rating gives you solid working capacity for most press circuits.

Question by: Hank R on Nov 29, 2025, 8:29 AM

got a hydraulic setup that needs a directional valve, what kind of control is this DG18V set up for

Answer by: Customer Support on Nov 30, 2025, 8:49 PM

Function-wise, it is a single-stage directional control valve that supports either three-way or four-way directional control, so it can route flow to shift actuators in a typical hydraulic circuit.

Question by: Pete G on Sep 8, 2025, 6:47 AM

Can this handle hydraulic fluid with no problem?

Answer by: Customer Support on Sep 9, 2025, 9:37 AM

This valve uses Buna-N seals, which offer good compatibility with typical hydraulic fluids.
