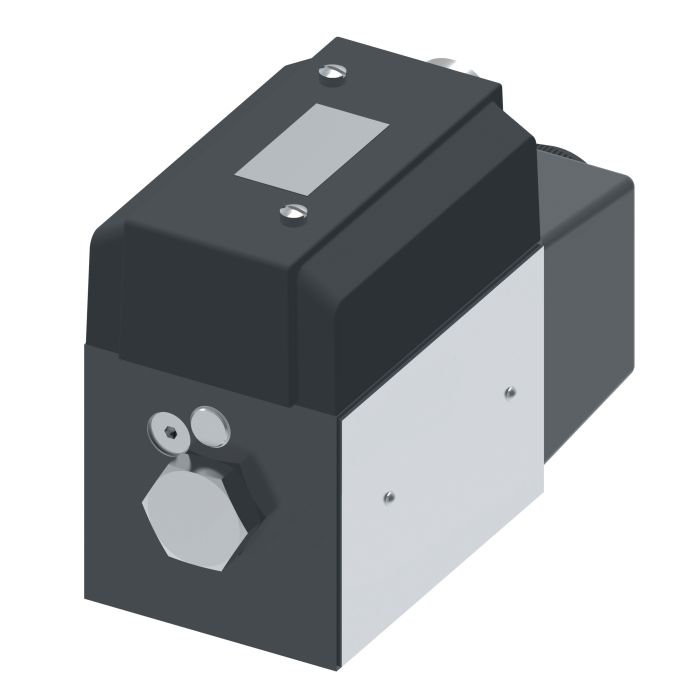

main product photo

Vickers PA3DG4S4LW 012A B

Ask A Question

Description & Features

Designed for versatile applications in die casting, machine tools, and marine settings, the Vickers PA3DG4S4LW 012A B Directional Control Valve delivers reliable performance. With a flow rate of 95 liters per minute, this valve is suitable for demanding environments such as press use and primary metal industries. Its three- or four-way directional control options make it adaptable to various hydraulic systems, ensuring seamless integration on industry-standard surfaces.

Crafted with a Buna-N seal material, the Vickers PA3DG4S4LW 012A B is built for durability and efficiency, supporting applications in test equipment, simulation, and turbine control. This model is part of the Vickers IV Directional Control Valves series, renowned for their extensive adaptability across thousands of models to fit all needs.

SKU: 02-119478

Supplier Part Number (MPN): 02-119478

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
60 Series
Dimensions
8.36 in L x 2.58 in W x 5.41 in H
Domestic/Import
Domestic
Electrical Connection
3-Pin Connector
Indicator Light
With Indicator Light
Media
Petroleum Oil
Number of Stages
1
Performance
Standard
Seal Material
Buna-N
Segment Code
C
Series
DG4S4-01 60 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
Spring Offset LH
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Janet M on Dec 18, 2025, 2:11 PM
trying to keep up with a pretty hungry hydraulic circuit, what kind of flow can this PA3DG4S4LW handle?
Answer by: Customer Support on Dec 20, 2025, 2:04 PM
Performance-wise, it is rated for 95 liters per minute of flow, so it fits systems that need a solid amount of oil moved through a directional valve.
Question by: Tony M on Jul 8, 2025, 2:24 PM
Flow rate on this one shows 95 liters per minute, is that enough to run it in a press application without runnin' into performance problems?
Answer by: Customer Support on Jul 9, 2025, 3:47 PM
For press use, 95 liters per minute is a solid flow rate and this valve is explicitly rated for press environments. It sits in the Vickers IV Directional Control Valves series, which covers a wide range of demanding industrial applications, so press duty is well within its intended scope. As long as your system's flow demands don't exceed that 95 LPM figure, you should be in good shape.
