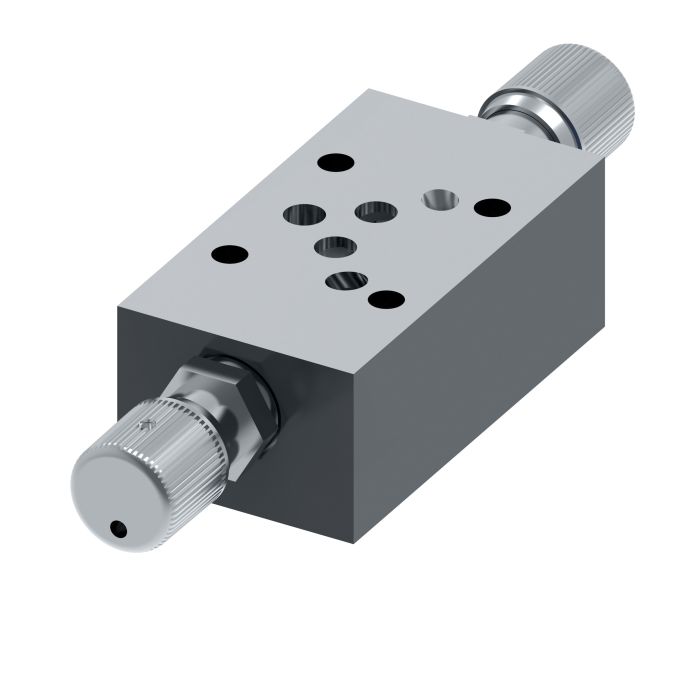

Vickers DGMFN 5 X A2H B2H

Ask A Question

Description & Features

The Vickers DGMFN 5 X A2H B2H is a SystemStak valve designed for diverse applications including die casting, foundry work, machine tools, marine and offshore environments, presses, primary metal production, paper manufacturing, test equipment, simulation, and turbine control systems (wind, steam, and water).

This Vickers valve minimizes installation costs and eliminates external leakage, while also boosting resistance to contamination. It features a nitrile seal material and a flow rate of 120 liters per minute. The product width is 2.82 inches.

SKU: 02-119485

Supplier Part Number (MPN): 02-119485

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pressure Operated
Adjustment Type
Handknob
Control Type 1
Standard Control
Control Type 2
Standard Control
Design
30 Series
Dimensions
9.78 in L x 2.82 in W x 1.97 in H
Direction of Flow
Meter-In Control
Domestic/Import
Domestic
Lead Time
100
Location Control Function 1
Line A
Location Control Function 2
Line B
Media
Petroleum Oil
Mounting Type
Manifold, Subplate
Performance
Standard
Port Operated Upon
A Cylinder Port
Seal Material
FKM
Segment Code
C
Series
DGMFN5 Series

Product Questions & Answers (3)

Question by: Rex S on Feb 27, 2026, 11:15 AM
Trying to clean up my stack and quit chasing leaks, is this SystemStak valve meant to help with that?
Answer by: Customer Support on Feb 28, 2026, 7:23 PM
One of the main benefits called out for this SystemStak style valve is reducing installation costs while eliminating external leakage. It is also described as boosting resistance to contamination, which helps in systems where you want a cleaner, tighter build.
Question by: Sheila S on Mar 22, 2026, 12:31 PM
Flow rate on this one shows 120 liters per minute, is that enough to handle press and die casting setups without choking out?
Answer by: Customer Support on Mar 24, 2026, 10:45 AM
For press and die casting applications, 120 liters per minute is a solid flow capacity. Both of those environments tend to demand consistent, high-volume flow under load, and this valve is specifically listed for those uses. As long as your system is sized to match that flow rating, you shouldn't run into any restriction issues in typical press or die casting cycles.
Question by: Duane W on Apr 30, 2025, 3:17 PM
Can this handle the kinda work you see in die casting and foundries?
Answer by: Customer Support on May 1, 2025, 5:58 PM
It's designed for applications like die casting, foundry work, and even tougher spots like marine and offshore environments, so it should hold up well.
