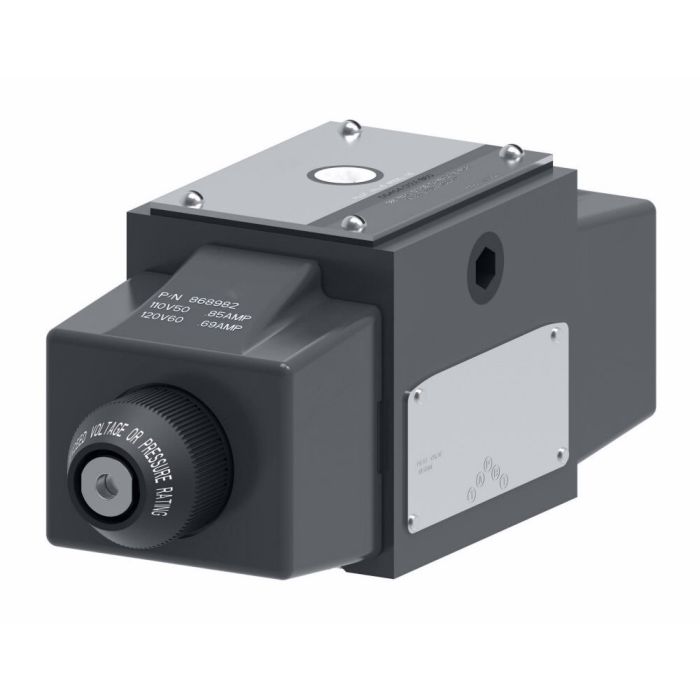

VICKERS DG4S4-016C-G-60

Ask A Question

Description & Features

Designed for three- and four-way directional control in demanding industrial environments, the Vickers DG4S4-016C-G-60 is a single-stage directional control valve rated for flow up to 95 litres per minute. With a solenoid wattage of 30W and Buna-N seals, it suits a wide range of hydraulic circuit configurations across heavy-duty applications.

This valve mounts on industry-standard surfaces and is well suited for use in machine tool, press, primary metal, marine/offshore, die casting and foundry, test equipment and simulation, and turbine control systems including wind, steam, and water installations. The broad model range within this series allows for close matching to specific circuit requirements without custom engineering.

SKU: 02-119617

Supplier Part Number (MPN): 02-119617

Alternate Part Numbers: DG4S4016CG60

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
60 Series
Dimensions
12.54 in L x 2.58 in W x 5.41 in H
Domestic/Import
Domestic
Electrical Connection
Flying Leads Coil
Indicator Light
Without Indicator Light
Media
Petroleum Oil
Number of Stages
1
Performance
Standard
Seal Material
Buna-N
Segment Code
C
Series
DG4S4-01 60 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 6
Spring Arrangement
Spring Centered, 3-Position
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Diane F on May 19, 2025, 9:38 AM
is the DG4S4-016C-G-60 just the part number, or is there more to it?
Answer by: Customer Support on May 22, 2025, 8:21 AM
The product identifier is simply the DG4S4-016C-G-60, which corresponds to a VICKERS unit. It is noted with just its name and model number, lacking any other specifics or configuration details.
Question by: Ralph C on Apr 7, 2025, 2:42 PM
got an old setup thats actin up and i think i need a new vickers dg4s4-016c-g-60 will this one fit the bill
Answer by: Customer Support on Apr 9, 2025, 11:41 AM
Certainly, it's exactly the VICKERS DG4S4-016C-G-60 you require for a straightforward replacement.
