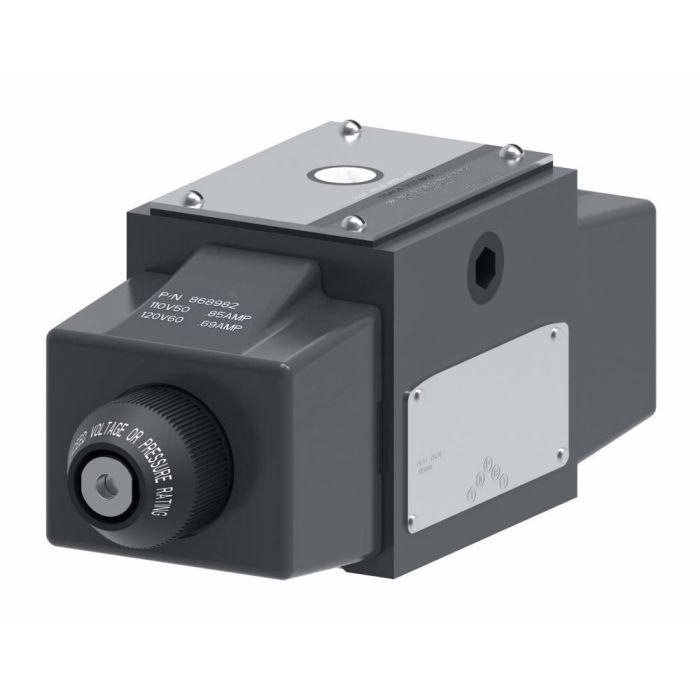

main product photo

Vickers DG4S4L 010C B 60

Ask A Question

Description & Features

Designed for demanding industrial environments, the Vickers DG4S4L 010C B 60 is a single-stage directional control valve offering three- or four-way directional control with a maximum flow rate of 95 litres per minute. Buna-N seals provide reliable fluid compatibility across a broad range of hydraulic applications.

Mounting follows industry-standard surface configurations, making installation straightforward in both new builds and retrofit situations. The valve is well-suited to a wide range of sectors including machine tool, press, marine and offshore, die casting and foundry, primary metal and paper, turbine control, and test equipment and simulation environments.

Part of the established Vickers product line by Danfoss/Eaton, this valve is available across thousands of configurations to match specific circuit and application requirements.

SKU: 02-120084

Supplier Part Number (MPN): 02-120084

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
60 Series
Dimensions
6.84 in L x 2.81 in W x 3.85 in H
Domestic/Import
Domestic
Electrical Connection
Flying Leads Coil
Indicator Light
With Indicator Light
Media
Petroleum Oil
Number of Stages
1
Performance
Standard
Seal Material
Buna-N
Segment Code
C
Series
DG4S4-01 60 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 0
Spring Arrangement
Spring Offset
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (3)

Question by: Roy B on Jul 30, 2025, 6:19 PM
This 'DG4S4L 010C B 60' keeps showing up on our paperwork—what's the proper name for this part?
Answer by: Customer Support on Aug 1, 2025, 9:57 AM
That there is called the Vickers DG4S4L 010C B 60, a hydraulic component. It's identified by that complete code, which matches it up for ordering or documentation purposes.
Question by: Roy A on Sep 15, 2025, 5:44 PM
Is this the correct model number for a Vickers directional valve marked DG4S4L 010C B 60?
Answer by: Customer Support on Sep 17, 2025, 12:42 PM
For sure, what you’ve got there matches exactly to the Vickers DG4S4L 010C B 60.
Question by: on Mar 25, 2026, 4:47 PM
This 'DG4S4L 010C B 60' keeps showing up on our paperwork, what's the proper name for this part?
Answer by: Customer Support on Mar 25, 2026, 4:47 PM
That there is called the Vickers DG4S4L 010C B 60, a hydraulic component. It's identified by that complete code, which matches it up for ordering or documentation purposes.
