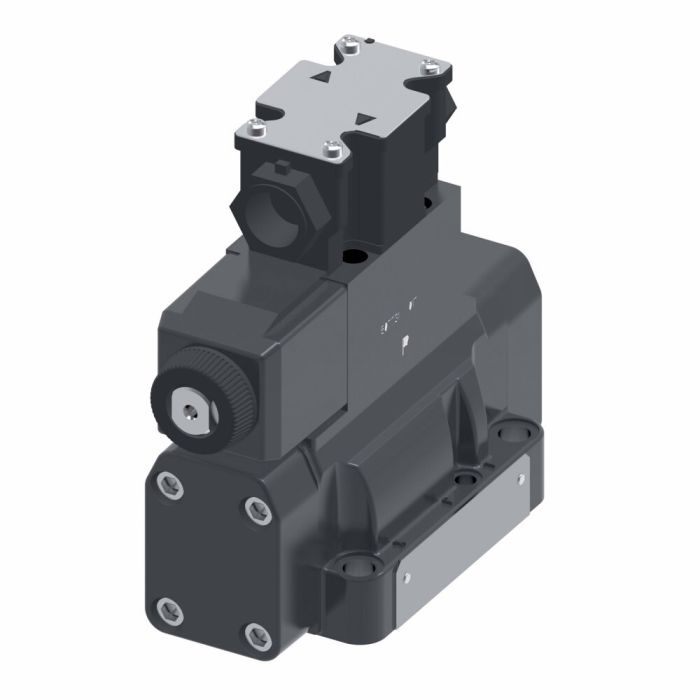

Vickers DG5S4 022A T M FW

Description & Features

Designed for versatile industrial applications, the Vickers DG5S4 022A T M FW directional control valve is ideal for die casting, machine tools, marine, and turbine control systems. Featuring three- or four-way directional control, this valve offers flexible operation across thousands of models, ensuring compatibility with a wide range of systems. Its robust design allows for easy mounting on industry-standard surfaces, making integration seamless and efficient.

With a flow rate of 115 liters per minute and a wattage of 30, this valve efficiently manages hydraulic flow and pressure. Constructed with durable Buna-N seal material, it guarantees long-lasting performance in demanding environments. The Vickers brand, known for reliability and precision, ensures this valve meets the rigorous demands of industrial sectors, including primary metal production and offshore applications.

SKU: 02-127376

Supplier Part Number (MPN): 02-127376

Specifications

Brand Vickers by Danfoss	Actuator Type Solenoid, Pilot Operated	Design 20 Series	Dimensions 5.75 in L x 2.63 in W x 6.32 in H	Domestic/Import Domestic	Electrical Connection 1/2 in NPT Housing Flying Leads	Ext Pilot Pressure Internal	Indicator Light Without Indicator Light	Int Pilot Drain Internal	Manual Override Plain	Media Petroleum Oil	Number of Stages 2	Performance Standard	Seal Material Buna-N	Series DG5S4-02 20 Series	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 2	Spring Arrangement Spring Offset to A	Surge Suppressor Damper Without Surge Suppressor Damper	Valve Mount Type Subplate/Manifold

Similar Products

Model Number	Dimensions	Price	Action
02-126488	5.75 in L x 2.63 in W x 6.32 in H
02-126490	7.87 in L x 2.63 in W x 6.32 in H
02-126492	7.87 in L x 2.63 in W x 6.32 in H
02-126497	7.87 in L x 2.63 in W x 6.32 in H
02-134618	7.87 in L x 2.63 in W x 6.32 in H
02-134753	7.87 in L x 2.63 in W x 6.32 in H
02-134794	7.87 in L x 2.63 in W x 6.32 in H
02-134930	7.87 in L x 2.63 in W x 6.32 in H
02-135746	7.87 in L x 2.63 in W x 6.32 in H
02-139876	7.87 in L x 2.63 in W x 6.32 in H
02-139880	7.87 in L x 2.63 in W x 6.32 in H
02-141215	5.75 in L x 2.63 in W x 6.32 in H
02-148980	7.87 in L x 2.63 in W x 6.32 in H
02-155658	7.87 in L x 2.63 in W x 7.75 in H
02-304628	7.87 in L x 2.63 in W x 6.32 in H
02-319982	7.87 in L x 2.63 in W x 6.32 in H
02-342338	5.75 in L x 2.63 in W x 7.9 in H
02-343987	5.75 in L x 2.63 in W x 6.32 in H
02-362372	7.87 in L x 2.63 in W x 6.32 in H
02-364207	7.87 in L x 2.63 in W x 6.32 in H
02-364493	7.87 in L x 2.63 in W x 7.9 in H
02-364739	7.87 in L x 2.63 in W x 8.09 in H
02-395023	7.87 in L x 2.63 in W x 6.32 in H

Product Questions & Answers (2)

Question by: Chad A on Aug 30, 2025, 9:53 PM

flow rate on this thing is listed at 115 liters per minute, is that enough for a typical machine tool setup or press application?

Answer by: Customer Support on Sep 1, 2025, 11:12 AM

For most machine tool and press applications, 115 liters per minute is a solid working figure. That range covers a wide variety of mid-to-heavy duty hydraulic circuits without issue. The valve is built specifically with those environments in mind, along with die casting and foundry work, so it's well matched to the kind of flow demands those systems put on a directional control valve.

Question by: Phil G on May 22, 2025, 11:19 AM

What kind of seal does this directional valve use?

Answer by: Customer Support on May 23, 2025, 9:33 PM

This Vickers valve uses a Buna-N seal, which provides good performance in a variety of hydraulic applications.
