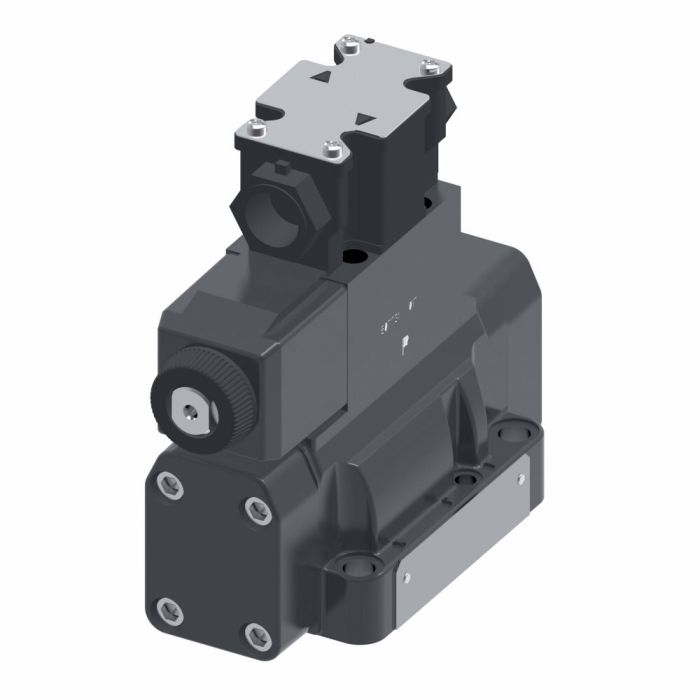

Vickers DG5S4 042A M FW B5

Description & Features

The Eaton Vickers DG5S4 042A M FW B5 directional control valve is suited for applications such as die casting and foundry, machine tools, marine/offshore, press, primary metal, paper, and test equipment and simulation.

This Vickers directional control valve is easily mounted on industry-standard surfaces, with models to suit diverse applications. It is a three- or four-way directional control valve and offers a flow rate of 94 liters per minute.

Seal material: Buna-N.

Product width: 3.5.

Wattage: 30.

SKU: 02-127385

Supplier Part Number (MPN): 02-127385

Alternate Part Numbers: DG5S4042AMFWB560

Specifications

Brand Vickers by Danfoss	Actuator Type Solenoid, Pilot Operated	Design 60 Series	Dimensions 7.64 in L x 3.5 in W x 6.51 in H	Domestic/Import Domestic	Electrical Connection 1/2 in NPT Housing Flying Leads	Ext Pilot Pressure Internal	Indicator Light Without Indicator Light	Int Pilot Drain External	Manual Override Plain	Media Petroleum Oil	Number of Stages 2	Performance Standard	Seal Material Buna-N	Segment Code C	Series DG5S4-04 60 Series	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 2	Spring Arrangement Spring Offset	Surge Suppressor Damper Without Surge Suppressor Damper	Valve Mount Type Subplate/Manifold

Similar Products

Model Number	Dimensions	Price	Action
02-127387	7.64 in L x 3.5 in W x 6.51 in H
02-127391	8.48 in L x 3.5 in W x 6.51 in H
02-127392	8.48 in L x 3.5 in W x 6.51 in H
02-127393	8.48 in L x 3.5 in W x 6.51 in H
02-127401	8.48 in L x 3.5 in W x 6.51 in H
02-134238	8.48 in L x 3.5 in W x 6.51 in H
02-134240	8.48 in L x 3.5 in W x 6.51 in H
02-134526	7.64 in L x 3.5 in W x 6.51 in H
02-134709	8.48 in L x 3.5 in W x 6.51 in H
02-134879	8.48 in L x 3.5 in W x 6.51 in H
02-134882	8.48 in L x 3.5 in W x 8.09 in H
02-134954	8.48 in L x 3.5 in W x 6.51 in H
02-135143	8.48 in L x 3.5 in W x 6.51 in H
02-135521	8.48 in L x 3.5 in W x 6.51 in H
02-136076	8.48 in L x 3.5 in W x 8.09 in H
02-140008	8.48 in L x 3.5 in W x 6.51 in H
02-141368	8.48 in L x 3.5 in W x 6.51 in H
02-144267	8.48 in L x 3.5 in W x 6.51 in H
02-149659	8.48 in L x 3.5 in W x 8.09 in H
02-399990	8.48 in L x 2.63 in W x 8.09 in H

Product Questions & Answers (2)

Question by: Keith B on Aug 4, 2025, 7:43 PM

what exactly is the Vickers DG5S4 042A M FW B5, just the valve or a whole assembly?

Answer by: Customer Support on Aug 7, 2025, 10:26 AM

The Vickers DG5S4 042A M FW B5 identifies the part as a Vickers hydraulic component, but the listing only confirms the model and doesn't specify if it's more than just the valve.

Question by: Dean W on Jun 9, 2025, 6:13 PM

Is this the exact Vickers DG5S4 042A M FW B5 part number I'm after for my setup?

Answer by: Customer Support on Jun 12, 2025, 3:35 PM

Sure thing, it's exactly listed as Vickers DG5S4 042A M FW B5.
