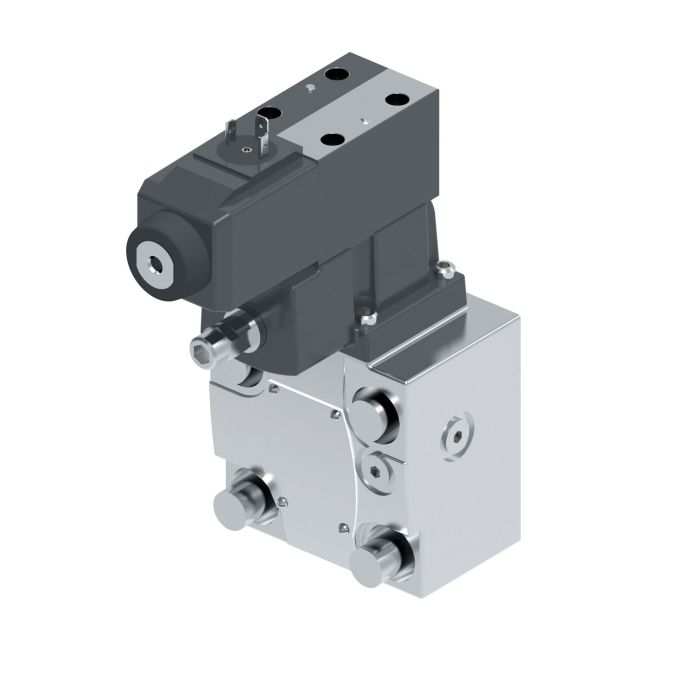

Vickers CT5 060A F M FW B5

Description & Features

Designed for hydraulic circuits requiring precise pressure control, the Vickers CT5 060A F M FW B5 is an adjustable pressure relief and regulating valve capable of handling flow rates up to 227 litres per minute. It is well suited to applications where limiting circuit pressure to a defined maximum is critical to consistent system performance.

Built with Buna-N seals for reliable fluid compatibility, this valve features a plug-and-play design that simplifies installation and replacement. Moisture-resistant construction supports use in demanding industrial environments. Produced under the Vickers brand by Danfoss/Eaton, it belongs to the CT5-06 series of high-performance pressure control valves.

SKU: 02-127449

Supplier Part Number (MPN): 02-127449

Alternate Part Numbers: C1JT47, CT5060AFMFWB5100

Specifications

Actuator Type Pilot Operated, Solenoid	Adjustment Type Screw with Locknut	Body Material Iron	Design 100 Series	Dimensions 5.77 in L x 3.28 in W x 9.54 in H	Domestic/Import Domestic	Electrical Connection 1/2 in NPT Housing Flying Leads	Hi-Vent Spring Without Hi-Vent Spring	Indicator Light Without Indicator Light	Manual Override Plain	Media Petroleum Oil	Nominal Size #06	Number of Stages 2	Performance Standard	Seal Material Buna-N	Series CT5-06 Series	Spring Arrangement Spring Offset	Valve Mount Type 3/4 in NPT Pipe	Voltage Rating 110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (3)

Question by: Eddie G on Jun 3, 2025, 6:34 AM

flow rate on this one goes up to 227 litres per minute, that right? trying to figure out if it'll keep up with what we got running on the line

Answer by: Customer Support on Jun 5, 2025, 6:59 AM

Yeah, 227 litres per minute is the rated flow capacity on this valve. If your circuit stays within that range, it should handle the demand without issue. It's built for pressure relief and regulation work, so as long as you're using it to limit circuit pressure to a set maximum, that flow rating is what you've got to work with.

Question by: Jimmy L on Mar 30, 2026, 9:05 PM

got a circuit that keeps spikin pressure, is this valve meant to cap it at a set max?

Answer by: Customer Support on Apr 1, 2026, 2:19 PM

For circuits where you need to hold pressure to a defined maximum, this is an adjustable pressure relief and regulating valve. You set it up to limit the circuit pressure, which helps keep system performance consistent when loads or conditions change.

Question by: Debbie T on Sep 6, 2025, 9:55 PM

Is this valve suitable for hydraulic systems where the pressure needs to be precisely controlled, like it says in the description?

Answer by: Customer Support on Sep 8, 2025, 12:50 PM

Absolutely. Designed for hydraulic circuits, this Vickers valve provides adjustable pressure relief and regulation to limit the pressure to a desired maximum.
