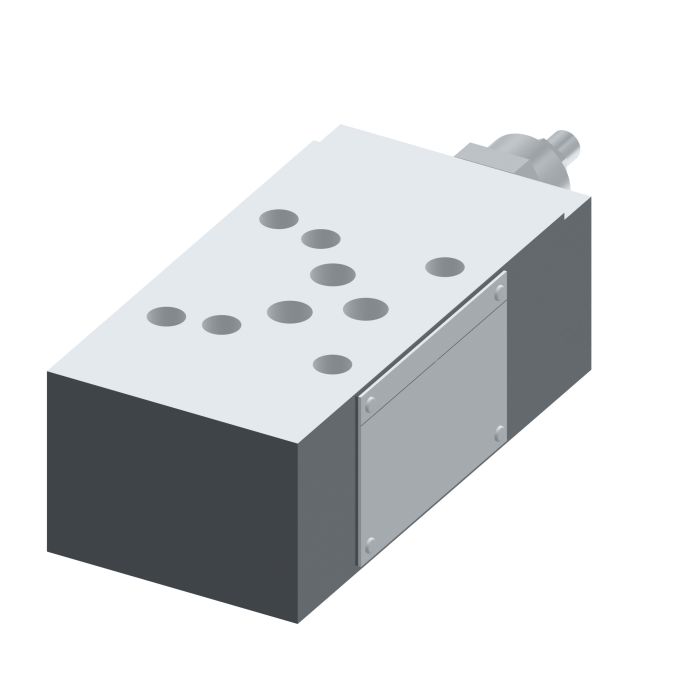

VICKERS DGMC 5 BT FW B 30

Description & Features

Designed for demanding industrial hydraulic circuits, the Vickers DGMC 5 BT FW B 30 is a SystemStak directional control valve rated for flow up to 120 litres per minute. Its stacked valve architecture reduces installation complexity by eliminating the need for individual inter-component connections, which also helps prevent external leakage and improves resistance to contamination in service.

Buna-N seals provide reliable performance across a broad range of hydraulic fluids. The valve is well suited to applications including machine tool circuits, press systems, die casting and foundry equipment, primary metal and paper machinery, marine and offshore installations, turbine control systems, and test and simulation equipment. Width measures 2.82 inches, making it compatible with compact manifold assemblies where space is a consideration.

SKU: 02-127594

Supplier Part Number (MPN): 02-127594

Specifications

Actuator Type Pressure Operated	Adjustment Type Screw and Locknut	Body Material Iron	Design 30 Series	Dimensions 7.44 in L x 2.82 in W x 1.97 in H	Domestic/Import Domestic	External Drain Without External Drain	Gauge Port Thread G1/8 BSPF	Media Petroleum Oil	Nominal Size #5	Number of Stages 1	Performance Standard	Port Drained Into T Port	Port Operated Upon B Cylinder Port	Remote Control Port Without Remote Control Port	Seal Material FKM	Series DGMC Series	Valve Mount Type Subplate/Manifold

Product Questions & Answers (3)

Question by: Larry H on Jun 20, 2025, 2:05 PM

trying to keep a manifold stack tight, how wide is this DGMC 5 valve?

Answer by: Customer Support on Jun 22, 2025, 6:40 AM

For tight manifold builds, the width is 2.82 inches, so it fits setups where space is limited.

Question by: Shawn H on Aug 3, 2025, 4:21 PM

Reckon this valve could handle the kind of pressures you find in a die casting setup?

Answer by: Customer Support on Aug 4, 2025, 7:20 PM

Designed for demanding industrial hydraulic circuits, the Vickers DGMC 5 BT FW B 30 is well-suited to applications including die casting and foundry equipment.

Question by: Scott W on Mar 18, 2026, 11:28 AM

flow rate on this one is 120 LPM, but what kind of jobs is it actually built for? we run press equipment and wanted to make sure before ordering

Answer by: Customer Support on Mar 19, 2026, 4:31 PM

Press systems are right in the wheelhouse for this valve. Beyond presses, it also sees regular use in machine tool circuits, die casting and foundry setups, primary metal and paper machinery, marine and offshore installations, turbine control, and test equipment. So if you're running hydraulic press circuits, you're well within the intended application range for this one.
