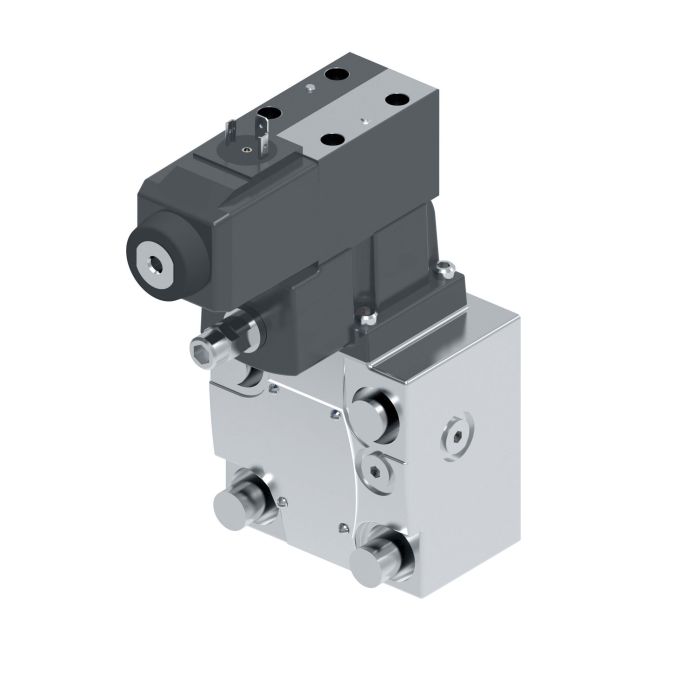

Vickers CS5 060A C M FTWL

Description & Features

The Vickers CS5 060A C M FTWL pressure control valve is engineered for applications requiring precise pressure regulation in hydraulic circuits. Designed to limit pressure to a desired maximum, this valve supports robust performance with a maximum flow rate of 227 litres per minute. Its moisture-resistant, plug-and-play design ensures ease of installation and reliable functionality in demanding environments.

Constructed with Buna-N seal material, the valve offers durability and compatibility with various hydraulic fluids. As part of the Vickers by Danfoss/Eaton lineup, it is synonymous with high-performance features suited for industrial settings. The valve's compact width of 3.28 inches facilitates integration into existing systems without compromising space.

SKU: 02-127940

Supplier Part Number (MPN): 02-127940

Specifications

Actuator Type Pilot Operated, Solenoid	Adjustment Type Screw with Locknut	Body Material Iron	Connection Type SAE	Design 100 Series	Dimensions 7.87 in L x 3.28 in W x 9.54 in H	Domestic/Import Domestic	Electrical Connection 1/2 in NPT Flying Leads Terminal Block	End Type SAE	Gauge Port Thread 16 UNF-2B	Hi-Vent Spring Without Hi-Vent Spring	Indicator Light With Indicator Light	Media Petroleum Oil	Nominal Size #06	Number of Stages 2	Performance Standard	Seal Material Buna-N	Series CS5-06 Series	Spring Arrangement Spring Offset	Valve Mount Type 1-5/8-12 UNF-2B Straight Thread	Voltage Rating 110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (3)

Question by: Carl G on Dec 16, 2025, 7:59 AM

If I need to swap out an old valve, what kinda flow rate should I be looking for to match this one up right?

Answer by: Customer Support on Dec 17, 2025, 6:34 PM

This Vickers CS5 valve handles a flow rate up to 227 liters per minute, so you'll want to make sure your replacement meets or exceeds that to maintain proper system performance.

Question by: Neil W on Sep 2, 2025, 8:04 AM

i need something that’ll keep my hydraulic circuit from climbing past a set pressure. is that what this CS5-06 valve is for

Answer by: Customer Support on Sep 4, 2025, 6:46 AM

In a hydraulic circuit where you want to cap pressure at a set maximum, this valve is used as an adjustable pressure relief or regulating valve to keep the system from going above that desired limit.

Question by: Bobby M on Oct 25, 2025, 1:23 PM

Flow rate on this one is listed at 227 litres per minute, that enough for most standard industrial hydraulic setups, or is that on the lower end?

Answer by: Customer Support on Oct 26, 2025, 8:05 PM

For a pressure control valve in this class, 227 litres per minute is a solid ceiling for a wide range of industrial hydraulic circuits. If your system runs well under that threshold, you've got good headroom. Where it starts to matter is in high-demand applications pushing near or above that limit, so just make sure your circuit's peak flow stays beneath it and you'll be in good shape.
