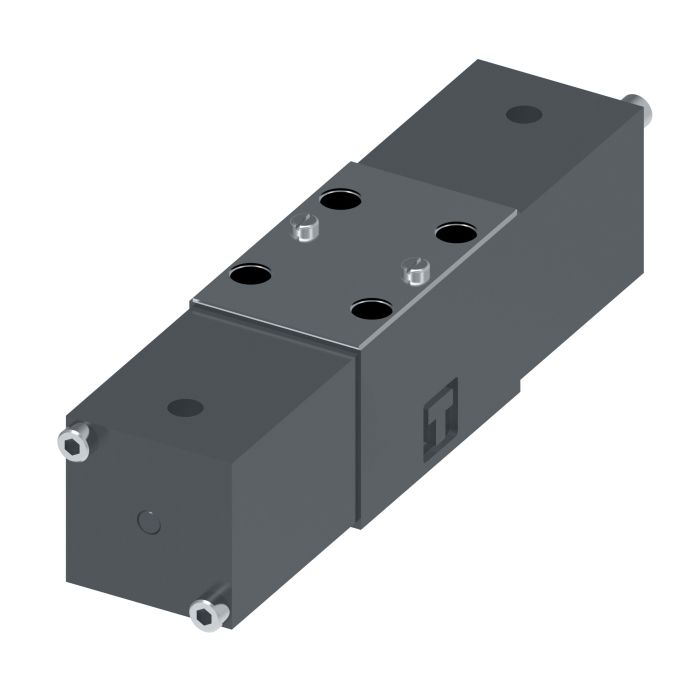

VICKERS DG18V 3 2N P 60

Description & Features

Designed for three- or four-way directional control in demanding hydraulic circuits, the Vickers DG18V 3 2N P 60 is a single-stage directional control valve rated for flow up to 75 litres per minute. It mounts on industry-standard surfaces, making integration straightforward across a wide range of equipment configurations.

With Buna-N seals and a broad application range, this valve is well-suited for use in machine tools, presses, die casting and foundry equipment, primary metal and paper processing, marine and offshore systems, test and simulation equipment, and turbine control applications covering wind, steam, and water. The extensive model range within the Dg18V series allows precise matching to specific circuit requirements.

SKU: 02-128079

Supplier Part Number (MPN): 02-128079

Specifications

Brand Vickers by Danfoss	Actuator Type Air, Solenoid	Design 60 Series	Dimensions 7.91 in L x 1.81 in W x 1.96 in H	Domestic/Import Domestic	Indicator Light Without Indicator Light	Language English	Manual Override Operator End	Media Petroleum Oil	Number of Stages 1	Performance Standard-Performance	Pilot Source Thread 1/8 in BSP	Seal Material FKM	Series DG18V-3 60 Series	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 2	Spring Arrangement No Spring Detented	Surge Suppressor Damper Without Surge Suppressor Damper	Valve Mount Type Subplate/Manifold

Similar Products

Model Number	Actuator Type	Seal Material	Dimensions
02-119301	Air, Solenoid	FKM	7.91 in L x 1.81 in W x 1.96 in H
02-127770	Air, Solenoid	FKM	7.91 in L x 1.81 in W x 1.96 in H
02-127784	Air, Solenoid	FKM	7.91 in L x 1.81 in W x 1.96 in H
02-127971	Air, Solenoid	FKM	7.91 in L x 1.81 in W x 1.96 in H
02-134327	Air, Solenoid	FKM	5.77 in L x 1.81 in W x 1.96 in H
02-134724	Air, Solenoid	FKM	5.77 in L x 1.81 in W x 1.96 in H
02-145115	Air, Solenoid	FKM	7.91 in L x 1.81 in W x 1.96 in H
02-145116	Air, Solenoid	FKM	5.77 in L x 1.81 in W x 1.96 in H
02-149004	Air, Solenoid	Buna-N	7.91 in L x 1.81 in W x 1.96 in H
02-304680	Air, Solenoid	FKM	5.77 in L x 1.81 in W x 1.96 in H
02-324401	Air	Buna-N	12.06 in L x 1.81 in W x 1.96 in H
02-339196	Air, Solenoid	FKM	5.77 in L x 1.81 in W x 1.96 in H
