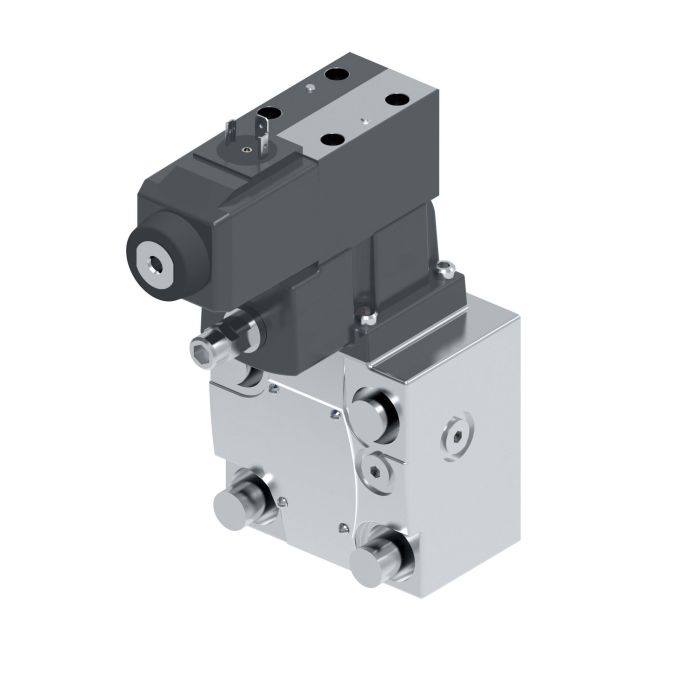

Vickers CT5 060A C M FTWL

Description & Features

The Vickers CT5 060A C M FTWL is a pressure control valve designed for applications requiring an adjustable pressure relief or regulating valve to limit the pressure in a hydraulic circuit to a desired maximum.

This Vickers valve features a plug-and-play design and high-performance features. It has a flow rate of 227 liters per minute and utilizes Buna-N seals. Its width is 3.28 inches.

SKU: 02-134345

Supplier Part Number (MPN): 02-134345

Specifications

Actuator Type Pilot Operated, Solenoid	Adjustment Type Screw with Locknut	Body Material Iron	Design 100 Series	Dimensions 7.87 in L x 3.28 in W x 9.54 in H	Domestic/Import Domestic	Electrical Connection 1/2 in NPT Flying Leads Terminal Block	Hi-Vent Spring Without Hi-Vent Spring	Indicator Light With Indicator Light	Manual Override Plain	Media Petroleum Oil	Nominal Size #06	Number of Stages 2	Performance Standard	Seal Material Buna-N	Series CT5-06 Series	Spring Arrangement Spring Offset	Valve Mount Type 3/4 in NPT Pipe	Voltage Rating 110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (1)

Question by: Roger B on Jun 6, 2025, 11:33 AM

trying to keep my hydraulic circuit from spiking, is this valve the kind that’ll cap the pressure where i set it?

Answer by: Customer Support on Jun 8, 2025, 7:02 AM

Built for adjustable pressure relief or regulating duty, it’s used to limit a hydraulic circuit to a desired maximum pressure.
