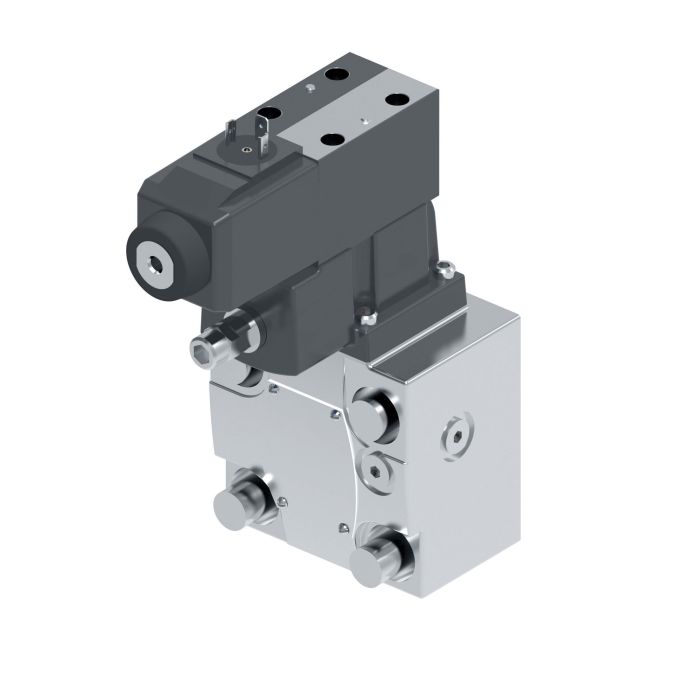

Vickers CS5 060A F M FW B5

Ask A Question

Description & Features

Designed for hydraulic circuits requiring precise pressure management, the Vickers CS5 060A F M FW B5 is an adjustable pressure control valve built to limit system pressure to a desired maximum. It is suited to applications where reliable pressure relief or regulation is essential to circuit protection and performance.

Rated for flow up to 227 litres per minute, this valve features a plug-and-play design for straightforward installation. Buna-N seals provide dependable resistance to common hydraulic fluids, while moisture-resistant construction supports use in demanding industrial environments. The CS5-06 series belongs to Vickers' pressure valve range under the Danfoss/Eaton product family.

SKU: 02-134677

Supplier Part Number (MPN): 02-134677

Specifications

Actuator Type
Pilot Operated, Solenoid
Adjustment Type
Screw with Locknut
Body Material
Iron
Connection Type
SAE
Design
100 Series
Dimensions
5.77 in L x 3.28 in W x 9.54 in H
Domestic/Import
Domestic
Electrical Connection
1/2 in NPT Housing Flying Leads
End Type
SAE
Gauge Port Thread
16 UNF-2B
Hi-Vent Spring
Without Hi-Vent Spring
Indicator Light
Without Indicator Light
Media
Petroleum Oil
Nominal Size
#06
Number of Stages
2
Performance
Standard
Seal Material
Buna-N
Series
CS5-06 Series
Spring Arrangement
Spring Offset
Valve Mount Type
1-5/8-12 UNF-2B Straight Thread
Voltage Rating
110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Jean T on Feb 4, 2026, 8:37 PM
swapping out an older pressure control valve, do i need to worry about this one keeping up with the flow or is it sized for higher volume circuits
Answer by: Customer Support on Feb 6, 2026, 7:07 AM
With a rated flow up to 227 litres per minute, it is built for hydraulic circuits that need an adjustable pressure relief or regulating valve without choking off higher flow setups.
