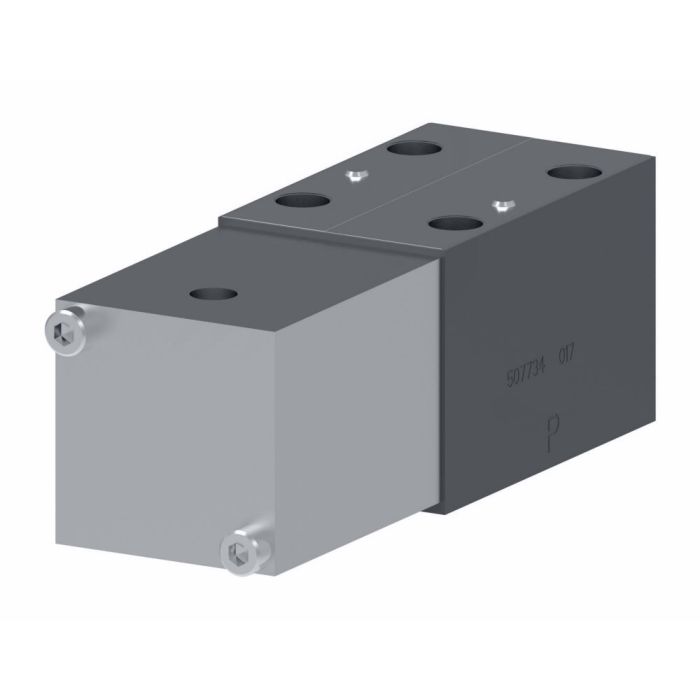

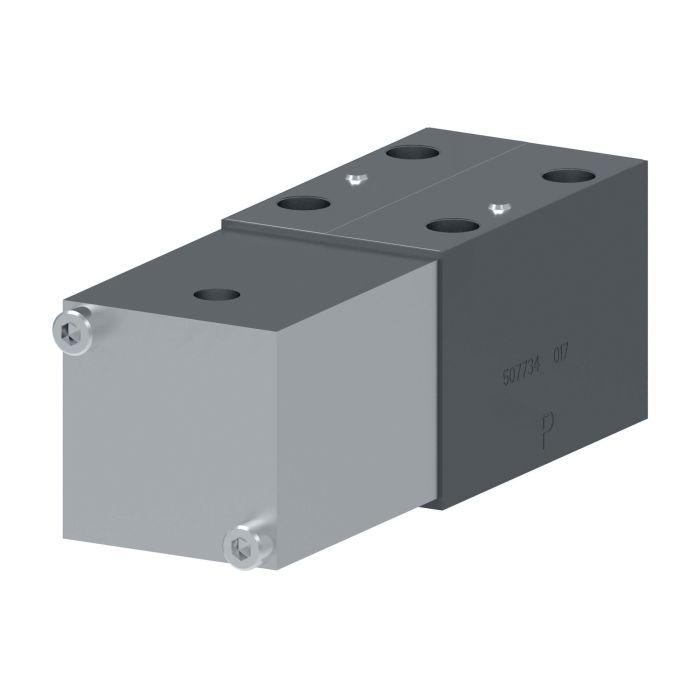

VICKERS DG18V 3 2BL T 60

Description & Features

The Vickers DG18V 3 2BL T 60 directional control valve is designed for applications including die casting, foundry, machine tools, marine and offshore equipment, presses, primary metal processing, paper manufacturing, test equipment, simulation, and turbine control systems.

This three- or four-way directional control valve is easily mountable on industry-standard surfaces. It utilizes Buna-N seals and offers a flow rate of 75 liters per minute.

SKU: 02-134724

Supplier Part Number (MPN): 02-134724

Alternate Part Numbers: DG18V32BLP60

Specifications

Actuator Type Air, Solenoid	Design 60 Series	Dimensions 5.77 in L x 1.81 in W x 1.96 in H	Domestic/Import Domestic	Indicator Light Without Indicator Light	Language English	Manual Override Operator End	Media Petroleum Oil	Number of Stages 1	Performance Standard-Performance	Pilot Source Thread 1/8 in BSP	Seal Material FKM	Series DG18V-3 60 Series	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 2	Spring Arrangement Spring Centered B Removed	Surge Suppressor Damper Without Surge Suppressor Damper	Valve Mount Type Subplate/Manifold

Product Questions & Answers (1)

Question by: Wayne P on Nov 19, 2025, 7:33 AM

We run die casting equipment and been looking at swapping out our old directional valve. Does the DG18V 3 2BL T 60 mount up to standard surfaces or are we gonna need custom adapters?

Answer by: Customer Support on Nov 20, 2025, 11:59 AM

Mounting is straightforward on this one. It's built to fit industry-standard surfaces, so you won't need custom hardware or special adapter plates to get it in place. Die casting is actually one of the listed applications for this valve, so it fits right into that kind of environment without any workarounds.
