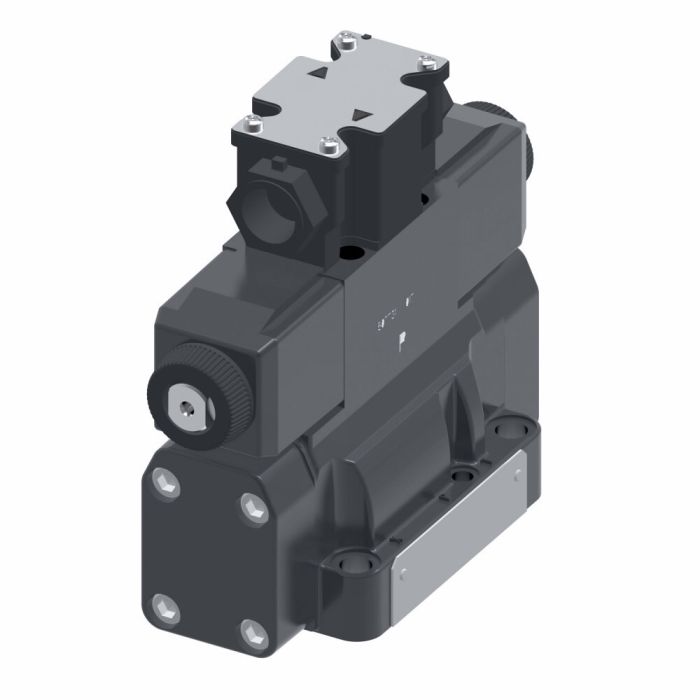

Vickers DG5S4 0431C M FTWL

Ask A Question

Description & Features

Designed for demanding industrial environments, the Vickers DG5S4 0431C M FTWL is a two-stage directional control valve offering three- or four-way flow control with a rated flow of 94 litres per minute. The Buna-N seal material supports compatibility across a broad range of hydraulic fluids, and the 30-watt coil rating reflects its suitability for continuous-duty machine circuit control.

Mounting follows industry-standard surface patterns, making integration into existing hydraulic circuits straightforward. This valve is well suited for applications across machine tool, press, primary metal, marine/offshore, die casting and foundry, turbine control, and test and simulation equipment. With thousands of model configurations available within the Vickers DG5S4 series, this unit represents a specific configuration within a well-established platform built to handle varied directional control requirements at the industrial scale.

SKU: 02-134879

Supplier Part Number (MPN): 02-134879

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
60 Series
Dimensions
8.48 in L x 3.5 in W x 6.51 in H
Domestic/Import
Domestic
Electrical Connection
Flying Leads Wired Terminal Block, 1/2 in NPT Thread Wiring Housing
Ext Pilot Pressure
Internal
Indicator Light
With Indicator Light
Int Pilot Drain
External
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
Standard
Seal Material
Buna-N
Segment Code
C
Series
DG5S4-04 60 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 31
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Brenda C on Jul 23, 2025, 9:07 AM
i’ve got a Vickers valve tagged DG5S4 0431C M FTWL, is this the same unit or just close
Answer by: Customer Support on Jul 24, 2025, 4:37 PM
Comparing the complete code, DG5S4 0431C M FTWL, confirms it's the same unit. This product carries that precise Vickers model designation.
Question by: Wayne R on Sep 11, 2025, 3:23 PM
Is this the right model DG5S4 0431C M FTWL for my old Vickers setup?
Answer by: Customer Support on Sep 12, 2025, 2:29 PM
Indeed, matches exactly with the Vickers DG5S4 0431C M FTWL we have here.
