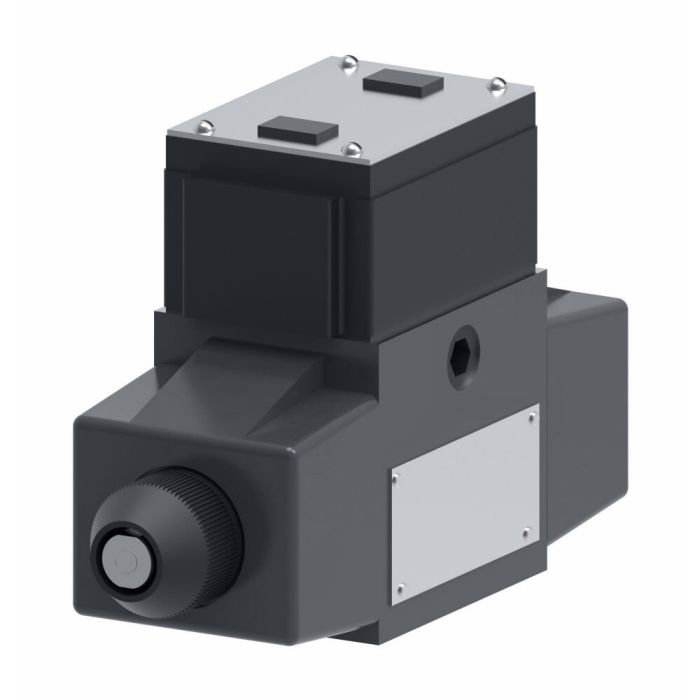

Vickers F3 DG4S4 016N B 60

Ask A Question

Description & Features

A single-stage directional control valve rated for flow up to 95 litres per minute, the Vickers F3 DG4S4 016N B 60 is designed for demanding industrial hydraulic systems across a broad range of sectors. Viton seals provide reliable fluid compatibility in high-temperature or chemically aggressive environments, making this valve well suited for press, primary metal, die casting and foundry, and turbine control applications, including wind, steam, and water turbines.

Three- or four-way directional control capability gives this valve wide application flexibility, while its design allows straightforward mounting on industry-standard valve surfaces. The DG4S4 series supports thousands of configuration variants, accommodating machine tool, marine and offshore, and test equipment and simulation environments with equal effectiveness.

SKU: 02-135042

Supplier Part Number (MPN): 02-135042

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
60 Series
Dimensions
6.84 in L x 2.81 in W x 3.85 in H
Domestic/Import
Domestic
Electrical Connection
Flying Leads Coil
Indicator Light
Without Indicator Light
Media
Petroleum Oil
Number of Stages
1
Performance
Standard
Seal Material
FKM
Segment Code
C
Series
DG4S4-01 60 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 6
Spring Arrangement
No Spring Detented
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Debbie M on May 16, 2025, 7:56 PM
got a hydraulic system that runs pretty warm, are the seals on this valve gonna hold up?
Answer by: Customer Support on May 18, 2025, 6:40 AM
For hotter running systems or fluids that are hard on standard elastomers, the Viton seal material is picked for that kind of environment. It is a solid fit when temperature and chemical compatibility are a concern.
