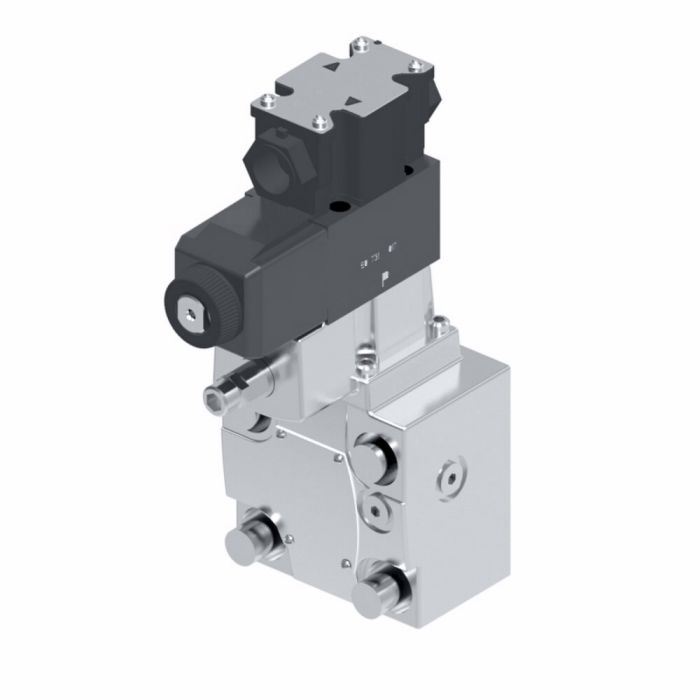

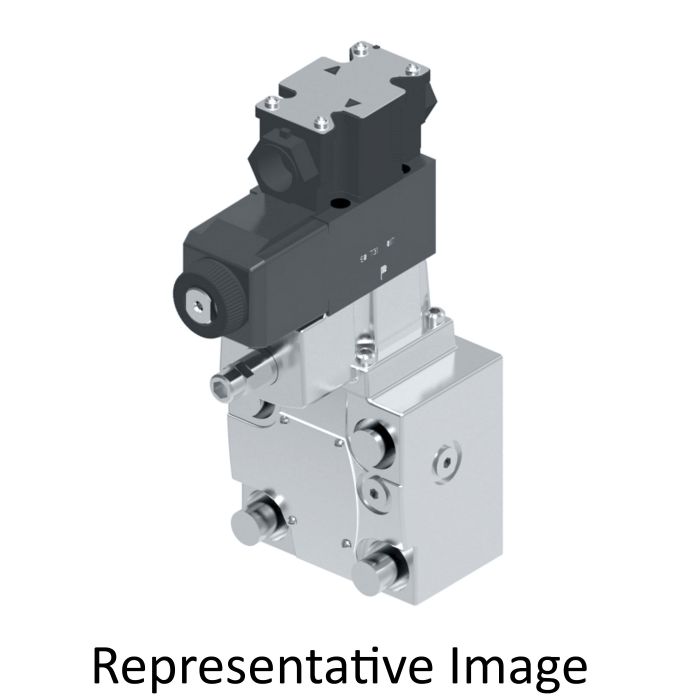

main product photo

Vickers CS5 H100A CV M FTWL

Ask A Question

Description & Features

Ideal for applications requiring adjustable pressure relief, the Vickers CS5 H100A CV M FTWL valve effectively limits hydraulic circuit pressure to a desired maximum. Engineered by Vickers, this high-performance valve integrates a plug-and-play design, ensuring ease of installation while maintaining robust moisture resistance. With a substantial flow rate of 680 liters per minute, it is well-suited for high-demand industrial environments. Constructed with durable Buna-N seal material, this valve offers reliability in challenging conditions, making it a trusted choice for professionals seeking quality and precision in pressure control.

SKU: 02-135060

Supplier Part Number (MPN): 02-135060

Specifications

Actuator Type
Pilot Operated, Solenoid
Adjustment Type
Screw with Locknut
Body Material
Iron
Connection Type
SAE
Design
100 Series
Dimensions
7.87 in L x 3.28 in W x 9.97 in H
Domestic/Import
Domestic
Electrical Connection
1/2 in NPT Flying Leads Terminal Block
End Type
SAE
Hi-Vent Spring
With Hi-Vent Spring
Indicator Light
With Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Nominal Size
10
Number of Stages
2
Performance
Standard
Seal Material
Buna-N
Series
CS5-10 Series
Spring Arrangement
Spring Offset
Valve Mount Type
1-5/8-12 UNF-2B Straight Thread
Voltage Rating
110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Billy S on Aug 3, 2025, 9:27 AM
Flow rate on this one says 680 liters per minute, that enough to hold up in a high-demand setup runnin continuous duty?
Answer by: Customer Support on Aug 5, 2025, 6:06 AM
680 liters per minute puts this valve well into heavy industrial territory. For high-volume hydraulic circuits where you need consistent pressure relief without the valve becoming a bottleneck, that flow capacity is genuinely substantial. It's built around the CS5-10 100 design from Vickers, so performance expectations are rooted in that platform's reputation for handling serious workloads.
Question by: Carl A on Jun 22, 2025, 6:58 AM
got a system that needs a pressure relief you can dial in. is this valve meant for that kind of job?
Answer by: Customer Support on Jun 24, 2025, 6:35 AM
For adjustable pressure relief or regulating duty, the CS5 H100A CV M FTWL is built to limit a hydraulic circuit to a set maximum pressure, which is exactly what you are describing.
Question by: Johnny H on Oct 16, 2025, 5:20 PM
If I'm using this valve to keep the pressure steady in my hydraulic system, what's the most it can handle?
Answer by: Customer Support on Oct 18, 2025, 6:28 AM
This Vickers valve can manage a flow rate of up to 680 liters per minute.
