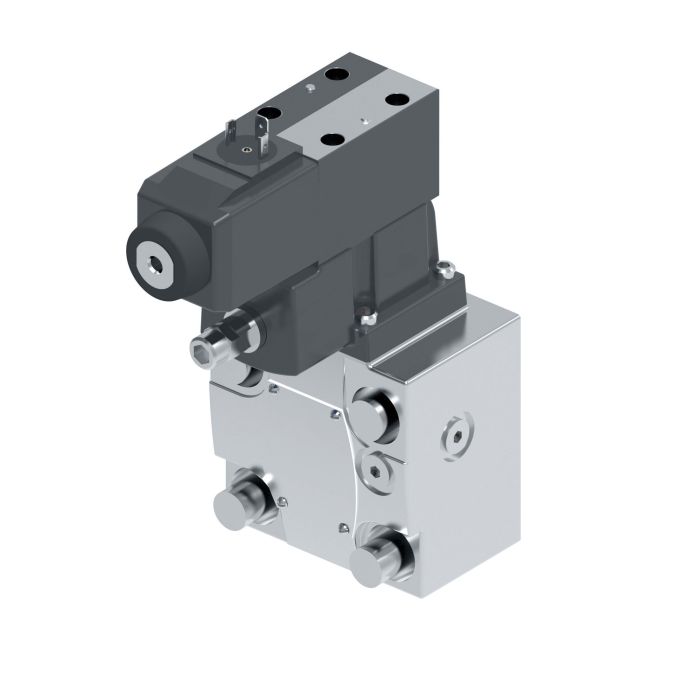

Vickers CS5 060A B M FTWL

Description & Features

The Vickers CS5 060A B M FTWL is designed for applications requiring an adjustable pressure relief or regulating valve. This valve limits the pressure in a hydraulic circuit to a desired maximum.

This Vickers valve has high-performance features and a plug-and-play design. Constructed with Buna-N seals, it has a maximum flow rate of 227 liters per minute and a product width of 3.28 inches.

SKU: 02-135113

Supplier Part Number (MPN): 02-135113

Specifications

Actuator Type Pilot Operated, Solenoid	Adjustment Type Screw with Locknut	Body Material Iron	Connection Type SAE	Design 100 Series	Dimensions 5.77 in L x 3.28 in W x 9.54 in H	Domestic/Import Domestic	Electrical Connection 1/2 in NPT Flying Leads Terminal Block	End Type SAE	Gauge Port Thread 16 UNF-2B	Hi-Vent Spring Without Hi-Vent Spring	Indicator Light With Indicator Light	Media Petroleum Oil	Nominal Size #06	Number of Stages 2	Performance Standard	Seal Material Buna-N	Series CS5-06 Series	Spring Arrangement Spring Offset	Valve Mount Type 1-5/8-12 UNF-2B Straight Thread	Voltage Rating 110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (1)

Question by: Steve H on Mar 9, 2026, 8:24 PM

What's the max flow this valve can handle before it starts causing problems in the circuit?

Answer by: Customer Support on Mar 11, 2026, 4:48 PM

Running up to 227 liters per minute, so it's got solid capacity for most industrial hydraulic setups. It functions as an adjustable pressure relief or regulating valve, meaning it holds the circuit pressure at whatever maximum you dial it in to. As long as your system flow stays within that range, you're in good shape.
