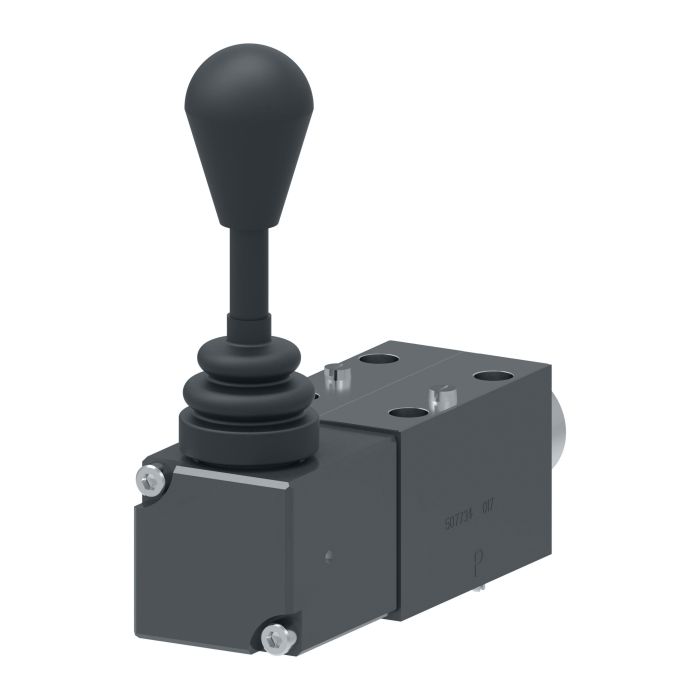

VICKERS DG17V 3 2NL 60

Ask A Question

Description & Features

Designed for three- or four-way directional control in demanding industrial environments, the Vickers DG17V 3 2NL 60 is a single-stage directional control valve suited to a broad range of hydraulic circuit applications. With a flow rate of 75 litres per minute and Buna-N seals, it is built to perform reliably across industries including machine tool, press, marine/offshore, die casting and foundry, primary metal and paper, test equipment and simulation, and turbine control.

Mountable on industry-standard surfaces, this valve fits into a wide variety of system configurations without requiring custom interfaces. The DG17V series is offered across thousands of model variants, making it straightforward to match to specific circuit and application requirements. Seal material and directional control configuration are confirmed in the product specifications.

SKU: 02-135317

Supplier Part Number (MPN): 02-135317

Alternate Part Numbers: DG17V32NL60

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Lever/Knob
Design
60 Series
Dimensions
5.96 in L x 1.81 in W x 5.96 in H
Domestic/Import
Domestic
Indicator Light
Without Indicator Light
Language
English
Media
Petroleum Oil
Number of Stages
1
Performance
Standard-Performance
Seal Material
FKM
Series
DG17V-3 60 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
No Spring Detented LH
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Norm P on Jan 30, 2026, 9:26 PM
Could you tell me exactly what this “VICKERS DG17V 3 2NL 60” popping up means?
Answer by: Customer Support on Jan 31, 2026, 4:15 PM
The notation VICKERS DG17V 3 2NL 60 serves as the identification tag for this Vickers product. However, the mentioned name doesn't cover its usage, function, or specs.
Question by: Cindy G on May 21, 2025, 7:58 AM
i need to replace a vickers dg17v 3 2nl 60 in my setup is this the exact model
Answer by: Customer Support on May 22, 2025, 11:38 AM
Absolutely, that's exactly the Vickers DG17V 3 2NL 60 model listed here.
