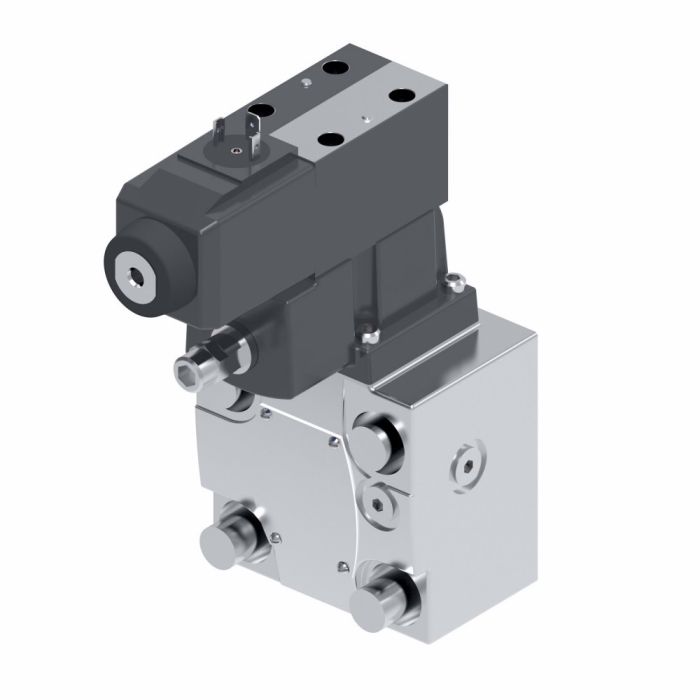

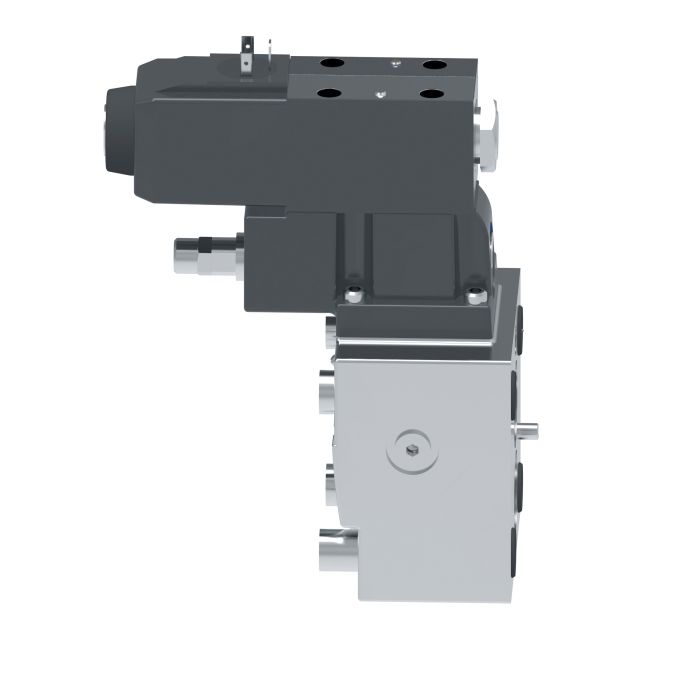

Vickers CG5 100A F M U B5

Description & Features

Eaton Vickers CG5 100A F M U B5 pressure control valves are suitable for applications requiring an adjustable pressure relief or regulating valve to limit the pressure in a hydraulic circuit to a desired maximum. This Vickers valve has a plug-and-play design and high-performance features. It has a Buna-N seal and a flow rate of 454 liters per minute.

This sub-branded Vickers valve is moisture resistant and measures 3.38 inches in width.

SKU: 02-135520

Supplier Part Number (MPN): 02-135520

Specifications

Actuator Type Pilot Operated, Solenoid	Adjustment Type Screw with Locknut	Body Material Iron	Design 100 Series	Dimensions 5.75 in L x 3.38 in W x 10.09 in H	Domestic/Import Domestic	Hi-Vent Spring Without Hi-Vent Spring	Indicator Light Without Indicator Light	Manual Override Plain	Media Petroleum Oil	Nominal Size 10	Number of Stages 2	Performance Standard	Seal Material Buna-N	Segment Code C	Series CG5-10 Series	Spring Arrangement Spring Offset	Valve Mount Type Subplate/Manifold	Voltage Rating 110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (3)

Question by: Rod C on Oct 5, 2025, 5:49 PM

Is this the right valve if I need to keep the pressure in my hydraulic system from going too high?

Answer by: Customer Support on Oct 7, 2025, 6:34 AM

Designed to limit pressure in hydraulic circuits, the CG5-10 100 should work well for adjustable pressure relief or regulation.

Question by: Peggy R on Sep 21, 2025, 7:36 PM

got a circuit that keeps spiking pressure on startup. is this CG5 valve the kind that’ll let me set a max pressure so it quits doing that

Answer by: Customer Support on Sep 23, 2025, 6:27 AM

In a hydraulic circuit where you need to cap pressure, this valve fits the job. It is an adjustable pressure control valve used for pressure relief or regulating to limit the circuit to a desired maximum.

Question by: Eddie P on Nov 23, 2025, 11:41 AM

what's the max flow rate on this pressure control valve? got a circuit that pushes pretty hard and I want to make sure it ain't gonna be a bottleneck

Answer by: Customer Support on Nov 25, 2025, 6:33 AM

Rated at 454 litres per minute, so it's built to handle high-demand hydraulic circuits without choking flow. For most industrial and heavy-duty applications running significant volume, that ceiling gives you solid headroom.
