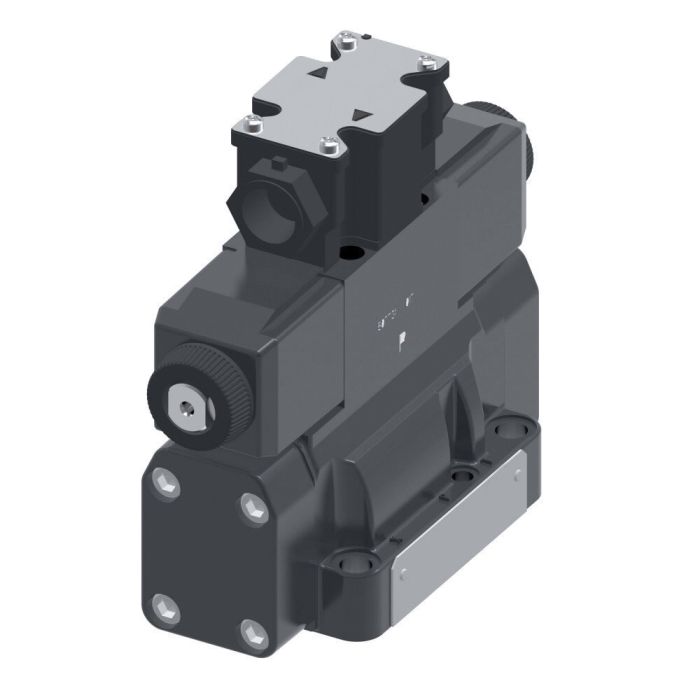

DG5S4-02-2C-3-T-M-FW-B5-

Description & Features

Designed for versatility across demanding environments, the Vickers DG5S4-02-2C-3-T-M-FW-B5- directional control valve offers reliable performance in applications such as die casting, machine tools, marine use, and turbine controls. Its three- or four-way directional control ensures precision flow management, with a robust flow rate of 115 liters per minute. The valve is easily mountable on industry-standard surfaces, providing flexibility in various setups.

Constructed with durable Buna-N seal material, this directional control valve is engineered for enduring functionality. As part of the Danfoss Power Solutions line, it integrates seamlessly with existing systems, supported by thousands of model configurations to suit specific needs. With a wattage of 30, it delivers efficient operation tailored for high-demand industrial settings.

SKU: 02-135744

Supplier Part Number (MPN): 02-135744

Specifications

Actuator Type Pilot Operated, Solenoid	Body Material Iron	Design 20 Series	Dimensions 7.87 in L x 2.63 in W x 6.32 in H	Domestic/Import Domestic	Electrical Connection 1/2 in NPT Housing Flying Leads	Enclosure Type IP65	Ext Pilot Pressure Internal	Indicator Light Without Indicator Light	Int Pilot Drain Internal	Language English	Manual Override Plain	Media Petroleum Oil	Number of Ports/Ways 4-Port	Number of Stages 2	Performance Standard-Performance	Seal Material Buna-N	Series DG5S4-02 20 Series	Softgoods Material Nitrile	Special Features Special 9A Spool, Proportional Body, Cam Assembled 180 deg from Standard with Pivot Shaft Cover	Spool Control Stroke/Pilot Choke Adjustment	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 2	Spring Arrangement Spring Centered	Surge Suppressor Damper Without Surge Suppressor Damper	Valve Mount Type Subplate/Manifold

Product Questions & Answers (2)

Question by: Dwayne W on Feb 18, 2026, 9:00 AM

Flow rate on this one is listed at 115 liters per minute, is that enough for press and die casting work, or is it on the lower end for those applications?

Answer by: Customer Support on Feb 19, 2026, 3:24 PM

For die casting and press applications, 115 liters per minute is a solid working flow rate. Vickers built this valve specifically with those environments in mind, along with machine tool and primary metal use, so it's not a stretch to say it fits right into that kind of duty. Whether it's enough depends on your system's demand, but the valve itself isn't the limiting factor for most standard setups in those industries.

Question by: Lee H on Nov 18, 2025, 12:53 PM

Will this directional control valve fit standard industrial mounting surfaces, or do I need some kind of adapter?

Answer by: Customer Support on Nov 19, 2025, 7:17 PM

Easily mountable on industry-standard surfaces, this directional control valve offers flexibility in various setups.
