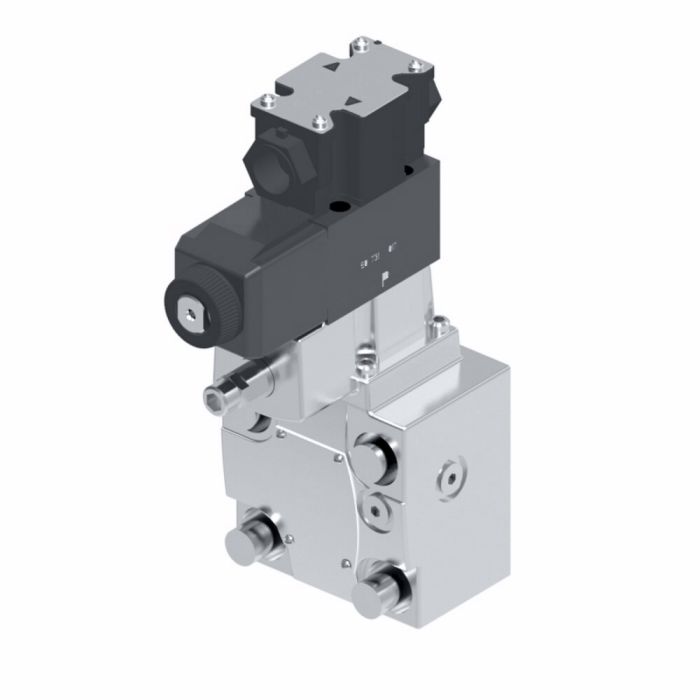

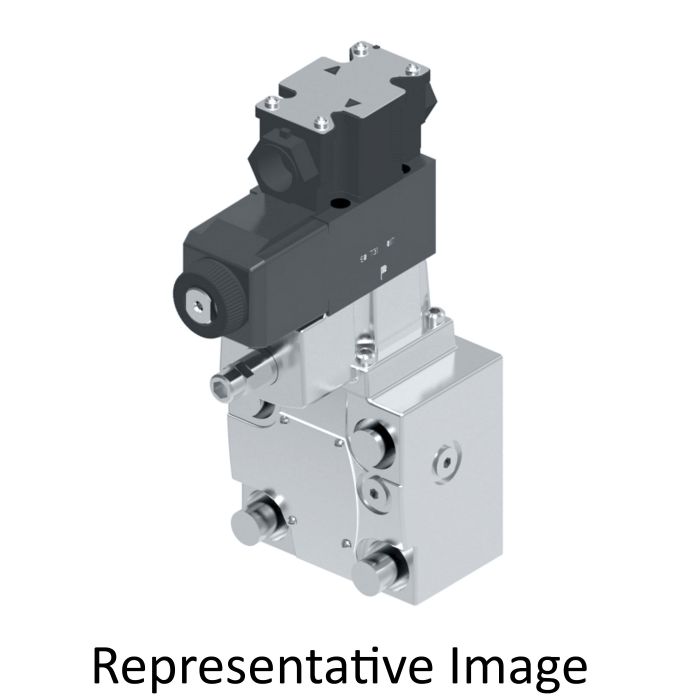

Vickers CG5 100A C M FW B6

Description & Features

Designed for applications that require adjustable pressure relief or regulating, the Vickers CG5 100A C M FW B6 pressure control valve limits the pressure in a hydraulic circuit to a desired maximum.

This Vickers valve features a plug-and-play design and high-performance features and is moisture resistant. It has a maximum flow rate of 454 liters per minute and utilizes Buna-N seals.

SKU: 02-135856

Supplier Part Number (MPN): 02-135856

Specifications

Actuator Type Pilot Operated, Solenoid	Adjustment Type Screw with Locknut	Body Material Iron	Design 110 Series	Dimensions 5.75 in L x 3.38 in W x 10.09 in H	Domestic/Import Domestic	Electrical Connection 1/2 in NPT Housing Flying Leads	Hi-Vent Spring Without Hi-Vent Spring	Indicator Light Without Indicator Light	Manual Override Plain	Media Petroleum Oil	Nominal Size 10	Number of Stages 2	Performance Standard	Seal Material Buna-N	Series CG5-10 Series	Spring Arrangement Spring Offset	Valve Mount Type Subplate/Manifold	Voltage Rating 110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (3)

Question by: Debbie T on Sep 29, 2025, 4:55 PM

i’m swapping out an older pressure valve and just need the basics, what’s this CG5 100A actually do in the circuit

Answer by: Customer Support on Oct 1, 2025, 9:25 AM

In a hydraulic circuit, it acts as an adjustable pressure control valve used for pressure relief or regulating, keeping system pressure from going past a set maximum.

Question by: Kurt W on Feb 2, 2026, 8:25 AM

flow rate on this unit is listed at 454 liters per minute -- that enough for a high-demand circuit or is that more of a mid-range valve?

Answer by: Customer Support on Feb 4, 2026, 6:26 AM

For most industrial hydraulic circuits, 454 liters per minute puts this well into the capable range. That's a solid flow capacity for pressure relief and regulating applications that see heavy demand. If your circuit is pushing close to or beyond that ceiling, you'd want to size up, but for the majority of high-flow systems this handles the load without issue.

Question by: Wes B on Aug 4, 2025, 10:59 AM

What kind of hydraulic jobs is this Vickers valve really good for?

Answer by: Customer Support on Aug 5, 2025, 9:31 PM

It's designed for applications needing adjustable pressure relief, basically limiting pressure in a hydraulic circuit to a set maximum.
