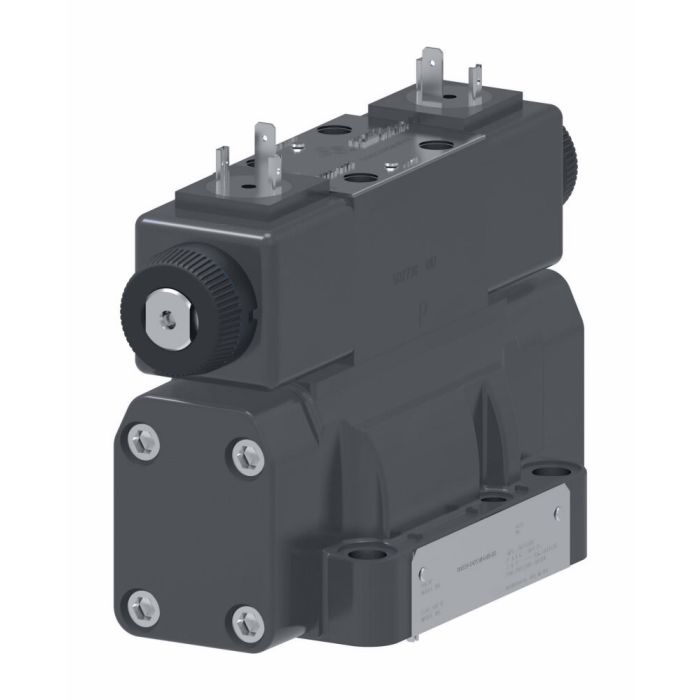

Vickers DG5S4 042C M U B5 60

Ask A Question

Description & Features

Rated for flow up to 94 litres per minute, the Vickers DG5S4 042C M U B5 60 is a two-stage directional control valve designed for demanding industrial hydraulic systems. It supports three- or four-way directional control and mounts readily on industry-standard subplate surfaces, making integration straightforward across a wide range of installations. Buna-N seals provide reliable performance in typical hydraulic fluid environments, and the 30-watt solenoid rating reflects its suitability for continuous duty applications.

This valve is well suited to high-demand sectors including machine tool, press, die casting and foundry, primary metal and paper processing, marine and offshore, turbine control, and test and simulation equipment. The broad application range reflects the flexibility of the DG5S4 platform, which is available in a wide variety of configurations to match specific circuit requirements.

SKU: 02-135860

Supplier Part Number (MPN): 02-135860

Alternate Part Numbers: DG5S4042CMUB560

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
60 Series
Dimensions
8.48 in L x 3.5 in W x 6.36 in H
Domestic/Import
Domestic
Ext Pilot Pressure
Internal
Indicator Light
Without Indicator Light
Int Pilot Drain
External
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
Standard
Seal Material
Buna-N
Segment Code
C
Series
DG5S4-04 60 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Travis W on Sep 29, 2025, 11:24 AM
Flow rate on this thing is listed at 94 litres per minute, that enough to handle press or die casting work without choking the circuit?
Answer by: Customer Support on Oct 1, 2025, 6:56 AM
For press and die casting applications, 94 litres per minute puts this valve comfortably in range for most high-demand cycles those industries run. It's a two-stage directional control valve built with exactly those environments in mind, so the flow capacity isn't an afterthought. As long as your system demand stays within that ceiling, you won't be fighting the valve for performance.
Question by: Earl B on Feb 11, 2026, 1:03 PM
got a circuit that needs 3-way control, but sometimes we run 4-way. is this valve able to do either one?
Answer by: Customer Support on Feb 12, 2026, 9:32 PM
For directional control, the DG5S4 platform supports three or four way operation, so it fits circuits that call for either style of directional switching.
