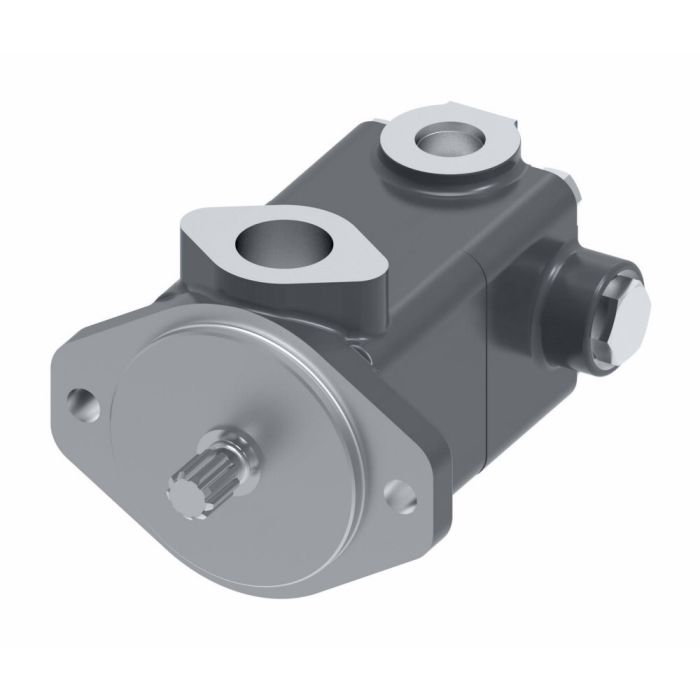

Vickers F3 V10 1P5P 11D20 LH

Description & Features

Designed for demanding industrial fluid power applications, the Vickers F3 V10 1P5P 11D20 LH is a single vane pump built on the well-established V10 series platform from Vickers by Danfoss/Eaton. Its pressure-balanced, modular 12-vane design helps reduce noise and flow pulsation, a practical advantage in environments where consistent output and lower acoustic signatures matter.

Constructed from cast iron with Viton seals, this pump is well-suited for use with a range of hydraulic fluids across applications including metal cutting, plastic injection molding, dump truck systems, and wheel loader equipment, as well as oil and gas service. It delivers a flow rate of approximately 49.3 litres per minute and is available across a wide range of displacements within the V10 series. The left-hand (LH) configuration suits installations where shaft rotation direction is a specific requirement.

SKU: 02-136773-8

Supplier Part Number (MPN): 02-136773-8

Specifications

Brand Vickers by Danfoss	Cartridge Type 20 Design	Dimensions 6.05 in L x 5.12 in W x 4.35 in H	Drive Shaft Type Splined	Housing Material Iron	Inlet Type NPT	Maximum Operating Pressure 2500 psi	Mounting Type Flanged	Outlet Cover Port Orientation 90 deg Clockwise From Inlet Port	Outlet Type NPT	Rotation Direction Clockwise	Seal Material FKM	Series V10 Series	Shaft Pitch 16/32	Vane Type Balanced

Product Questions & Answers (3)

Question by: Norm E on Feb 17, 2026, 3:28 PM

What kind of hydraulic fluid should I be using in this pump?

Answer by: Customer Support on Feb 19, 2026, 11:41 AM

This Vickers V10 vane pump uses a cast iron construction with Viton seals, which makes it compatible with a range of hydraulic fluids.

Question by: Hank R on Jan 7, 2026, 5:13 PM

got a setup that needs left-hand rotation. is this Vickers F3 V10 1P5P 11D20 LH actually a LH pump or is that just part of the number

Answer by: Customer Support on Jan 9, 2026, 6:23 AM

Left-hand rotation is what the LH callout is there for. That configuration is meant for installs where the shaft rotation direction is a requirement, so it is not just a random suffix.

Question by: Harold M on Feb 25, 2026, 12:15 PM

pump puts out around 49 liters a minute -- is that gonna hold up running it on a dump truck setup day in day out?

Answer by: Customer Support on Feb 27, 2026, 6:58 AM

For dump truck applications, that flow rate sits right in a practical working range. The V10 series was built with exactly that kind of service in mind, dump trucks are listed right alongside wheel loaders and industrial equipment as intended applications. The cast iron construction handles the demands of mobile equipment well, and the pressure-balanced 12-vane design keeps flow pulsation low, which matters when you're cycling a hoist repeatedly throughout a shift.
