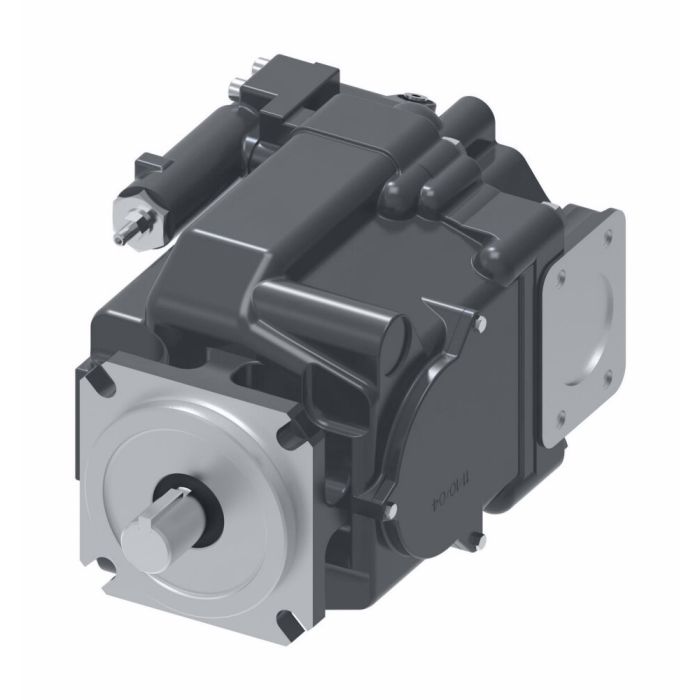

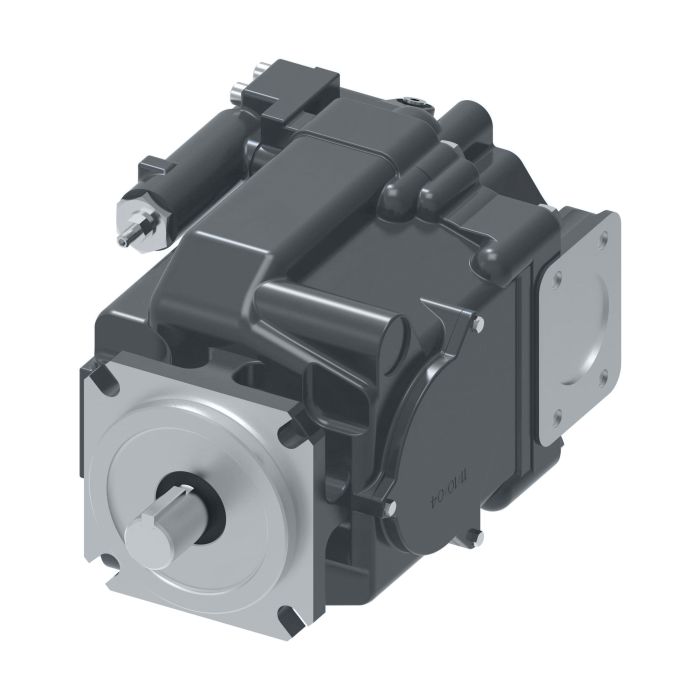

main product photo

VICKERS PVH57C RAF 1S 10

Ask A Question

Description & Features

The Eaton Vickers PVH57C RAF 1S 10 variable displacement piston pump is designed for open circuit applications including metal cutting equipment and injection molding machines.

This Vickers pump features durable construction for long-lasting performance, along with torque-limiting capabilities. Common applications include use in mining machinery, oil and gas equipment, primary metals processing, and conveyor lines.

SKU: 02-136958

Supplier Part Number (MPN): 02-136958

Alternate Part Numbers: PVH57CRAF1S10C25V31

Specifications

Brand
Vickers by Danfoss
Code Title
Vickers Pressure Compensated/Pressure Flow Compensated Open Circuit Piston Pump
Control Type
Pressure and Flow Compensator
Design Code
A
Dimensions
13.74 in L x 7.99 in W x 10.06 in H
Drain Port Size Location
3/4-16 UNF-2B SAE O-ring Port - Bottom (Top Plugged)
Drive Shaft Type
Keyed
Front Mounting Input Shaft
4-Bolt C (SAE J744-127-4) with 31.8 [1-1/4] Dia Straight Keyed Shaft (Key Included), 56 mm [2.2 in] Shaft Extension
Housing Material
Iron
Main Ports Size Location
Side Ports, Suction - 2.000 SAE 4 Bolt Split Flanged Port Standard Pressure Series (Code 61) with 1/2-13 UNC-2B Threads, Pressure - 1 SAE 4 Bolt Split Flanged Port Standard Pressure Series (Code 61) with 3/8-16 UNC-2B Threads
Mounting Type
2-Bolt Flanged
nmfc
125820
Pressure Compensator Setting
246 to 254
Rotation Direction
Clockwise (Right Hand)
Seal Material
Fluorocarbon
Segment Code
B
Series
PVH Series

Product Questions & Answers (2)

Question by: Lee H on Jun 12, 2025, 9:00 AM
We've got 'PVH57C RAF 1S 10' showing up in parts notes; what kind of item is this?
Answer by: Customer Support on Jun 14, 2025, 1:03 PM
It's a Vickers hydraulic product, known by its part number PVH57C RAF 1S 10. This exact name matches your notes, so it's ordered and referenced by that full designation.
Question by: Dwight O on Apr 6, 2025, 4:08 PM
what exactly is this vickers pvh57c raf 1s 10
Answer by: Customer Support on Apr 8, 2025, 1:53 PM
This item is the Vickers model PVH57C RAF 1S 10.
