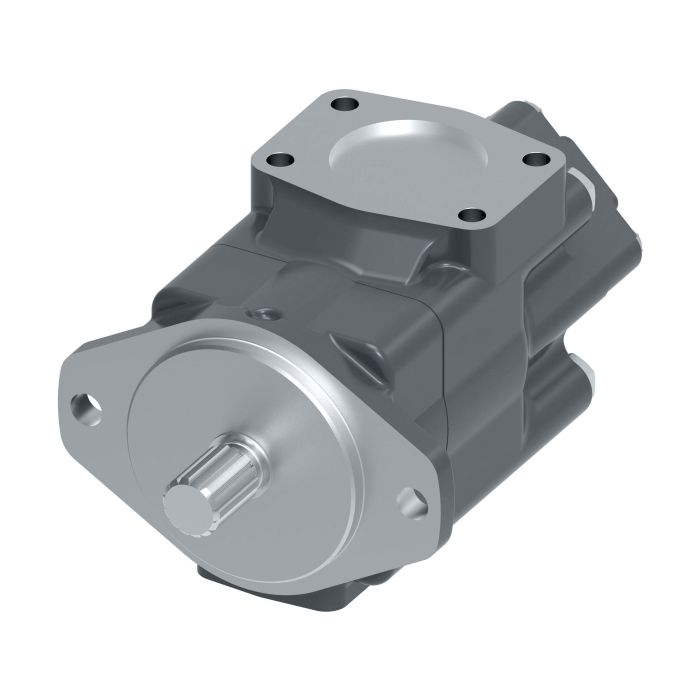

main product photo

VICKERS 2520V12A8 1DD22R

Ask A Question

Description & Features

A dual-section vane pump built on Vickers' 2520V series platform, the Vickers 2520V12A8 1DD22R delivers a flow rate of approximately 121.2 litres per minute and is suited to demanding industrial fluid power circuits. Cast iron construction provides durability across continuous-duty applications, while Buna-N seals offer reliable compatibility with standard hydraulic oils.

The pump features an intra-vane cartridge design that reduces operating noise and supports excellent volumetric efficiency. It is well matched to equipment used in metal cutting, plastic injection molding, oil and gas, dump truck, and wheel loader applications, sectors where consistent flow and mechanical reliability are priorities.

SKU: 02-137170-4

Supplier Part Number (MPN): 02-137170-4

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
317.5 mm L x 174.752 mm W x 146.05 mm H
Displacement
2.5 cu-in Shaft, 1.7 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
12 gpm Shaft, 8 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Post From CVR End
Outlet 1: 90 deg CW From Inlet, Outlet 2: 135 deg CW From Inlet
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Clockwise
Seal Material
Buna-N
Seal Type
Standard
Series
2520V Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (2)

Question by: Rex A on Feb 23, 2026, 4:57 PM
Could you explain the “V Series” label found on the VICKERS 2520V12A8 1DD22R?
Answer by: Customer Support on Feb 26, 2026, 5:13 PM
The VICKERS 2520V12A8 1DD22R is a specific model of hydraulic vane pump from the V Series, produced by Vickers under Danfoss and Eaton. That particular code identifies it.
Question by: Hank P on Aug 12, 2025, 8:13 AM
Would the Vickers 2520V12A8 1DD22R fit within the V series vane pumps from Eaton or Danfoss?
Answer by: Customer Support on Aug 14, 2025, 9:27 AM
You got it, that's definitely part of the Vickers V Series vane pump collection made via Danfoss and Eaton.
