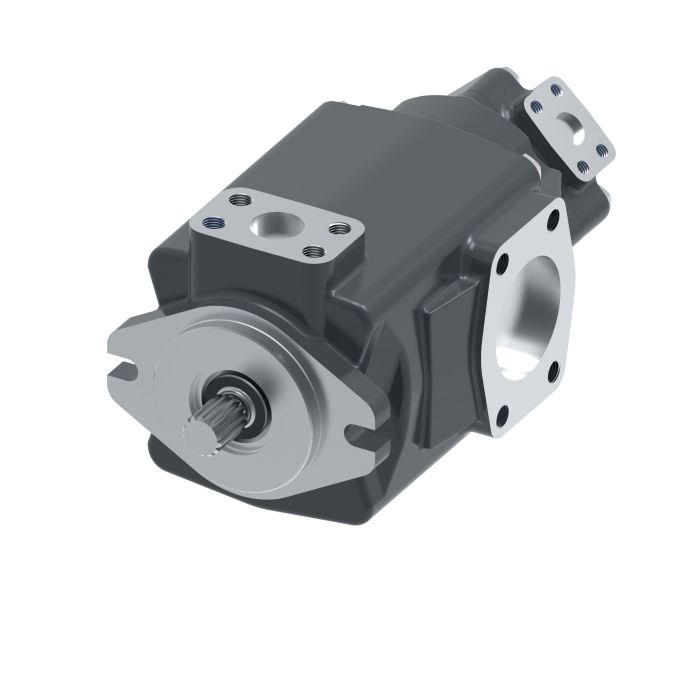

VICKERS 2520V17A5 1DC22R

Ask A Question

Description & Features

Designed for demanding industrial environments, the Vickers 2520V17A5 1DC22R vane pump excels in applications such as oil and gas, metal cutting, dump trucks, wheel loaders, and plastic injection molding. This hydraulic pump is engineered with an innovative intra-vane cartridge design, which significantly reduces noise and enhances volumetric efficiency, ensuring optimal performance under various conditions.

Constructed from durable cast iron, the pump is built to withstand harsh conditions while maintaining reliable operation. With a flow rate of 121.23 liters per minute, it is capable of delivering consistent hydraulic power. The Buna-N seal material further enhances its durability, providing excellent resistance to wear and tear. As part of the Vickers VHO series, this pump represents a blend of efficiency and robust construction.

SKU: 02-137187-W

Supplier Part Number (MPN): 02-137187-W

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
308.864 mm L x 174.752 mm W x 146.05 mm H
Displacement
3.4 cu-in Shaft, 1.1 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
17 gpm Shaft, 5 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Post From CVR End
Outlet 1: 90 deg CW From Inlet, Outlet 2: 45 deg CW From Inlet
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Clockwise
Seal Material
Buna-N
Seal Type
Standard
Series
2520V Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (1)

Question by: Gene J on Aug 25, 2025, 12:36 PM
Running a dump truck setup and need something that'll hold up to real work hours. This the right pump for that kind of application?
Answer by: Customer Support on Aug 26, 2025, 1:36 PM
Dump truck use is actually one of the listed applications for this pump, so you're in the right ballpark. It's built from cast iron, which holds up well under the kind of stress and vibration that comes with that work. The intra-vane cartridge design helps keep noise down and keeps volumetric efficiency where it needs to be, so you're not losing pressure when it counts. Flow rate comes in at just over 121 liters per minute, which gives it solid output for hydraulic lifting cycles.
