VICKERS 2520V17A8 1DC22R

Description & Features

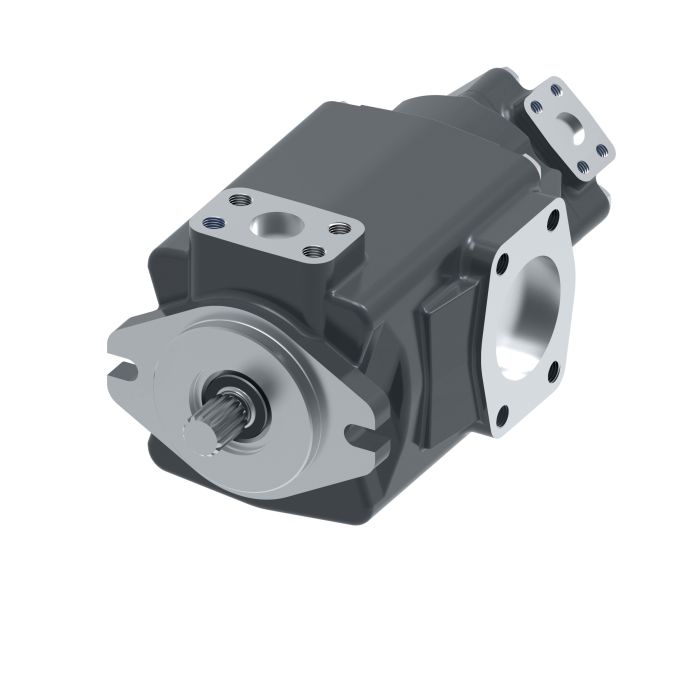

The Vickers 2520V17A8 1DC22R vane pump, manufactured by Vickers by Danfoss / Eaton, is designed for use in demanding applications such as oil and gas, metal cutting, dump trucks, wheel loaders, and plastic injection molding.

This V Series vane pump features an innovative intra-vane cartridge design that reduces noise and provides excellent volumetric efficiency. Constructed from durable cast iron with Buna-N seals, this Vickers sub-brand pump offers a flow rate of 121.23383808 litres per minute and has a width of 6.88 inches.

SKU: 02-137191-W

Supplier Part Number (MPN): 02-137191-W

Specifications

Brand Vickers by Danfoss	Cartridge Type 22 Design	Dimensions 308.864 mm L x 174.752 mm W x 146.05 mm H	Displacement 3.4 cu-in Shaft, 1.7 cu-in Cover	Drive Shaft Type Square Keyed	Flow Rate 17 gpm Shaft, 8 gpm Cover	Housing Material Iron	Maximum Operating Pressure 2500 psi	Mounting Type Flanged	Outlet Type Threaded	Port Connection Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged	Rotation Direction Clockwise	Seal Material Buna-N	Seal Type Standard	Series 2520V Series	Vane Type Fixed Displacement and Balanced

Product Questions & Answers (1)

Question by: Harvey P on Oct 2, 2025, 9:01 PM

what all is this pump used for? seen it listed for a few different things and just want to make sure it fits what we got going on with our dump trucks

Answer by: Customer Support on Oct 4, 2025, 6:53 AM

Dump truck applications are one of the main uses for this pump. It also sees regular use in wheel loaders, oil and gas equipment, metal cutting machinery, and plastic injection molding setups. So if you're running it on a dump truck, you're well within the intended range for this unit.
