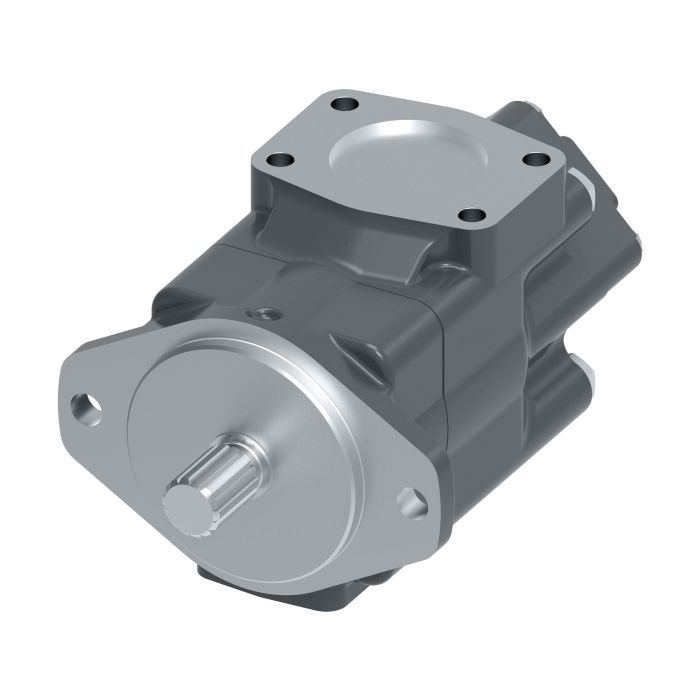

main product photo

VICKERS 2520V17A12-1CC22R

Ask A Question

Description & Features

Engineered for reliability and efficiency, the Vickers 2520V17A12-1CC22R Vane Pump excels in demanding industrial applications such as oil and gas, metal cutting, and plastic injection molding. Constructed from robust cast iron, it features an innovative intra-vane cartridge design that significantly reduces noise while delivering excellent volumetric efficiency. This makes it a prime choice for use in environments like dump trucks and wheel loaders where performance and quiet operation are essential.

Designed by Vickers, a trusted name in hydraulic solutions, this pump belongs to the 2520V series and employs Buna-N seal material for enhanced durability. Its precise dimensions and quality materials ensure longevity and optimal performance. With its specialized attributes, the Vickers 2520V17A12-1CC22R provides a dependable solution for complex hydraulic systems.

SKU: 02-137196-3

Supplier Part Number (MPN): 02-137196-3

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
317.5 mm L x 174.752 mm W x 146.05 mm H
Displacement
3.4 cu-in Shaft, 2.5 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
17 gpm Shaft, 12 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Post From CVR End
Outlet 1: Inline with Inlet, Outlet 2: 45 deg CW From Inlet
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Clockwise
Seal Material
Buna-N
Seal Type
Standard
Series
2520V Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (1)

Question by: Travis Y on Mar 2, 2026, 8:34 AM
Reckon this pump'll hold up okay in a plastic injection molding setup? Those machines can be pretty demanding.
Answer by: Customer Support on Mar 3, 2026, 8:54 AM
This Vickers vane pump is indeed suitable for plastic injection molding, along with other demanding applications such as oil and gas and metal cutting.
