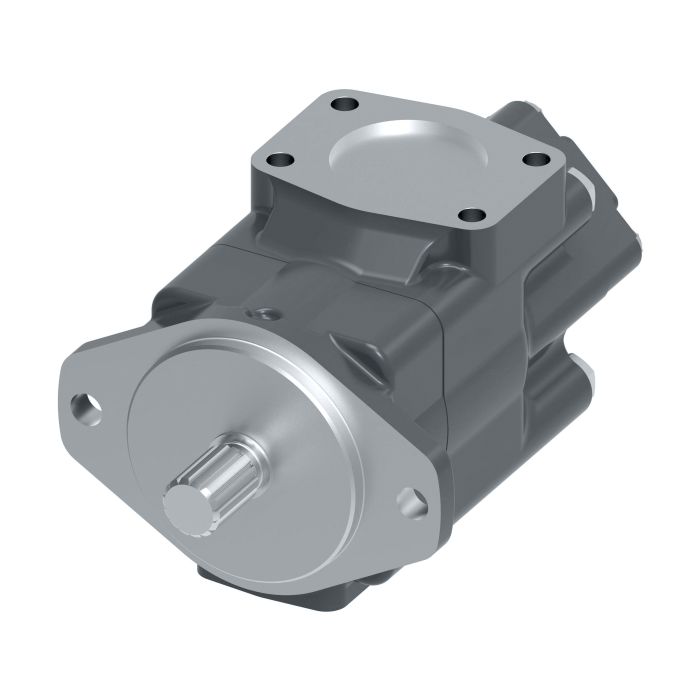

VICKERS 2520V21A14 1CC22L

Description & Features

Crafted from durable cast iron, the Vickers 2520V21A14 1CC22L vane pump is engineered for demanding industrial applications such as oil and gas, metal cutting, dump trucks, wheel loaders, and plastic injection molding. Its innovative intra-vane cartridge design minimizes noise while delivering excellent volumetric efficiency, making it a reliable choice for various hydraulic systems. The pump's construction includes Buna-N seals, ensuring robust performance and longevity in challenging environments.

Part of the Vickers by Danfoss/Eaton V Series, this pump is synonymous with quality and reliability. The 2520V series is renowned for its reduced noise levels and enhanced efficiency, vital for maintaining smooth use in high-pressure settings. This model's specific design attributes make it suitable for a wide range of industrial machinery, ensuring that your hydraulic needs are met with precision and effectiveness.

SKU: 02-137210-7

Supplier Part Number (MPN): 02-137210-7

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
317.5 mm L x 174.752 mm W x 146.05 mm H
Displacement
4.1 cu-in Shaft, 2.8 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
21 gpm Shaft/14 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Counterclockwise
Seal Material
Buna-N
Seal Type
Standard
Series
2520V Series
Vane Type
Fixed Displacement and Balanced

Similar Products

Model Number Displacement Flow Rate Dimensions Price Action
VICKERS 2520V12A5 1CC22L

02-137168-7

2.5 cu-in Shaft, 1.1 cu-in Cover

12 gpm Shaft, 5 gpm Cover

317.5 mm L x 174.752 mm W x 146.05 mm H

VICKERS 2520V12A8 1BB22L

02-137170-6

2.5 cu-in Shaft, 1.7 cu-in Cover

12 gpm Shaft, 8 gpm Cover

317.5 mm L x 174.752 mm W x 146.05 mm H

VICKERS-2520V14A8 1BC22L

02-137178-L

2.8 cu-in Shaft, 1.7 cu-in Cover

14 gpm Shaft, 8 gpm Cover

308.864 mm L x 174.752 mm W x 146.05 mm H

VICKERS 2520V14A14 1CC22L

02-137184-7

2.8 cu-in Shaft, 2.8 cu-in Cover

14 gpm Shaft, 14 gpm Cover

404.622 mm L x 265.176 mm W x 215.9 mm H

VICKERS 2520V17A5 1AA22L

02-137187-5

3.4 cu-in Shaft, 1.1 cu-in Cover

17 gpm Shaft, 5 gpm Cover

317.5 mm L x 174.752 mm W x 146.05 mm H

VICKERS 2520V17A5 1CC22L

02-137187-7

3.4 cu-in Shaft, 1.1 cu-in Cover

17 gpm Shaft, 5 gpm Cover

317.5 mm L x 174.752 mm W x 146.05 mm H

VICKERS 2520V17A11 1CC22L

02-137193-7

3.4 cu-in Shaft, 2.2 cu-in Cover

17 gpm Shaft, 11 gpm Cover

317.5 mm L x 174.752 mm W x 146.05 mm H

VICKERS 2520V21A5 1AA22L

02-137201-5

4.1 cu-in Shaft, 1.1 cu-in Cover

21 gpm Shaft, 5 gpm Cover

308.864 mm L x 174.752 mm W x 146.05 mm H

VICKERS-2520V21A5 1CD22L

02-137201-T

4.1 cu-in Shaft, 1.1 cu-in Cover

21 gpm Shaft, 5 gpm Cover

308.864 mm L x 174.752 mm W x 146.05 mm H

VICKERS-2520V21A8 1AC22L

02-137203-E

4.1 cu-in Shaft, 1.7 cu-in Cover

21 gpm Shaft, 8 gpm Cover

317.5 mm L x 174.752 mm W x 146.05 mm H

VICKERS 2520V21A12 1CC22L

02-137209-7

4.1 cu-in Shaft, 2.5 cu-in Cover

21 gpm Shaft, 12 gpm Cover

317.5 mm L x 174.752 mm W x 146.05 mm H

VICKERS-2520V21A12 1BC22L

02-137209-L

4.1 cu-in Shaft, 2.5 cu-in Cover

21 gpm Shaft, 12 gpm Cover

317.5 mm L x 174.752 mm W x 146.05 mm H

Product Questions & Answers (1)

Question by: Dean W on Aug 16, 2025, 8:35 AM
What kind of hydraulic applications does this vane pump work with? I'm using it for plastic injection molding.
Answer by: Customer Support on Aug 18, 2025, 7:55 AM
This Vickers vane pump works well in a variety of heavy-duty industrial applications, including plastic injection molding, metal cutting, and oil and gas use. It's also commonly found in dump trucks and wheel loaders.
