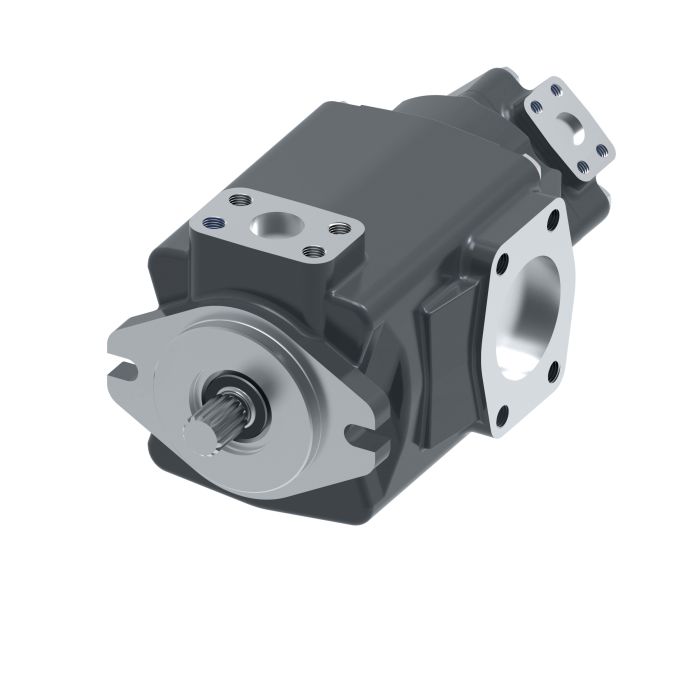

main product photo

VICKERS-3520V25A5 1DC22R

Ask A Question

Description & Features

The VICKERS-3520V25A5 1DC22R vane pump, from the Vickers by Danfoss / Eaton V Series, features an innovative intra-vane cartridge design which reduces noise and provides excellent volumetric efficiency.

This cast iron hydraulic vane pump is suitable for applications such as plastics machinery, press machines, die casting, machine tools and test equipment. It is also applicable to primary metal, pulp and paper, wood processing, oil and gas, marine, and general industrial uses. Constructed with Buna-N seals, this Vickers vane pump has a product width of 8.38 inches.

SKU: 02-137233-W

Supplier Part Number (MPN): 02-137233-W

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
15.05 in L x 8.38 in W x 6.4 in H
Displacement
4.9 cu-in Shaft, 1.1 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
25 gpm Shaft, 5 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Post From CVR End
Outlet 1: 90 deg CW From Inlet, Outlet 2: 45 deg CW From Inlet
Outlet Size
3/4 in, 1-1/4 in
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Clockwise
Seal Material
Buna-N
Seal Type
Standard
Series
3520 Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (1)

Question by: Kurt F on May 26, 2025, 11:13 AM
what all is this pump good for? got a press machine application and trying to figure out if it'll fit the bill
Answer by: Customer Support on May 28, 2025, 6:59 AM
Press machines are actually one of the core applications this pump was built around. It also covers die casting, plastics machinery, machine tools, and test equipment on the industrial side, plus broader uses like pulp and paper, wood processing, oil and gas, and marine work. Cast iron construction and Buna-N seals give it solid durability across those environments. For a press machine setup, you're in the right territory.
