main product photo

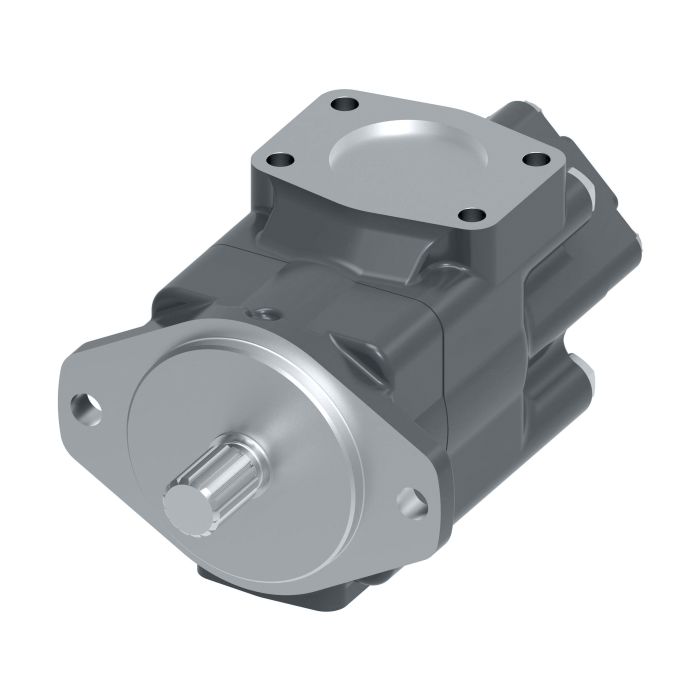

VICKERS 3520V25A11 86BB22R

Ask A Question

Description & Features

Designed for demanding industrial fluid power applications, the Vickers 3520V Series vane pump delivers reliable hydraulic output across a wide range of heavy-duty equipment. The 3520V25A11 86BB22R features an innovative intra-vane cartridge design that reduces operating noise while maintaining excellent volumetric efficiency, characteristics well suited to cycle-intensive applications such as press machines, die casting equipment, and machine tools.

Cast iron construction and Buna-N seals provide durability in both standard and challenging service environments. This pump is applicable across a broad range of industries, including plastics machinery, primary metal processing, pulp and paper, wood processing, oil and gas, marine, and general industrial use. The 3520V Series is a Vickers by Danfoss/Eaton product line with an established presence in industrial hydraulic system design.

SKU: 02-137244-2

Supplier Part Number (MPN): 02-137244-2

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
361.442 mm L x 212.852 mm W x 162.56 mm H
Displacement
4.9 cu-in Shaft, 2.2 cu-in Cover
Drive Shaft Type
Keyed
Flow Rate
25 gpm Shaft, 11 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Post From CVR End
Outlet 1: 90 deg CCW From Inlet, Outlet 2: 45 deg CCW From Inlet
Outlet Size
3/4 in, 1-1/4 in
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Clockwise
Seal Material
Buna-N
Seal Type
Standard
Series
3520 Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (1)

Question by: Curt G on Sep 4, 2025, 2:38 PM
What kind of machines is this pump actually built for? Got a press line and a couple die casting units and trying to figure out if it fits what we're running.
Answer by: Customer Support on Sep 6, 2025, 7:57 AM
Press machines and die casting equipment are both listed applications for this pump, so you're in the right territory. The intra-vane cartridge design helps keep noise down during those high-cycle use, which matters a lot when the equipment runs hard all shift. Cast iron construction holds up well in those kinds of industrial environments, and the Buna-N seals are suited for standard hydraulic fluid service. For cycle-intensive work like press and die casting lines, the 3520V series was put together with exactly that kind of demand in mind.
