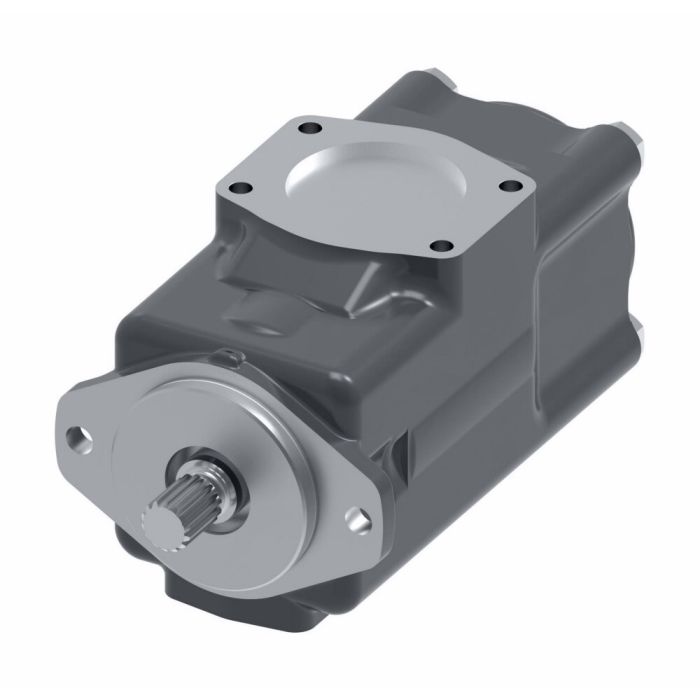

VICKERS 3520V30A2 1DD22R

Ask A Question

Description & Features

Engineered for demanding industrial applications, the Vickers 3520V30A2 1DD22R Vane Pump is a robust solution for sectors such as plastics machinery, die casting, and marine use. Its innovative intra-vane cartridge design ensures reduced noise and outstanding volumetric efficiency, making it an ideal choice for environments where performance and reliability are paramount.

Constructed from durable cast iron and featuring Buna-N seals, this pump offers a flow rate of 121.23 liters per minute, providing consistent and efficient hydraulic power. The Vickers 3520V series is renowned for its compatibility with a wide range of equipment, including press machines, machine tools, and pulp & paper processing systems, ensuring versatility across various industries.

SKU: 02-137250-4

Supplier Part Number (MPN): 02-137250-4

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
15.05 in L x 8.38 in W x 6.4 in H
Displacement
5.9 cu-in Shaft, 0.43 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
30 gpm Shaft, 2 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Post From CVR End
Outlet 1: 90 deg CW From Inlet, Outlet 2: 135 deg CW From Inlet
Outlet Size
3/4 in, 1-1/4 in
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Clockwise
Seal Material
Buna-N
Seal Type
Standard
Series
3520 Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (1)

Question by: Kurt A on Nov 18, 2025, 8:14 PM
What kind of applications is this pump actually built for? Got a press machine setup and trying to figure out if it fits what we need.
Answer by: Customer Support on Nov 20, 2025, 6:23 AM
Press machines are actually one of the core uses this pump was built around. It also covers plastics machinery, die casting, machine tools, pulp and paper processing, wood processing, marine use, oil and gas, and general industrial work. Cast iron construction keeps it tough enough for heavy-duty environments, and the Buna-N seals hold up well across a range of industrial conditions. For a press machine application, it lines up well with what this series was designed to handle.
