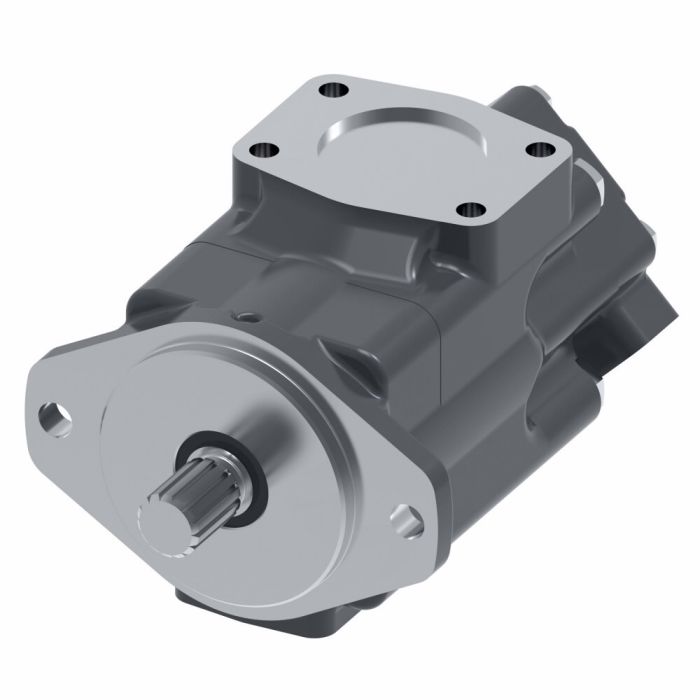

VICKERS 3520V30A8 86AA22R

Description & Features

Designed for demanding industrial hydraulic circuits, the Vickers 3520V30A8 86AA22R is a double vane pump built on the Vickers VHO Series platform. Its intra-vane cartridge design contributes to reduced noise levels and strong volumetric efficiency, characteristics that matter in continuous-duty environments such as metal cutting equipment, plastic injection molding machinery, dump trucks, and wheel loaders. Oil and gas applications are also within its rated scope.

The pump body is cast iron, providing structural durability under sustained pressure cycling. Buna-N seals are fitted as standard, making the unit compatible with conventional petroleum-based hydraulic fluids. With a flow rate of approximately 121.2 litres per minute, this pump suits mid-to-high flow circuit requirements. At 10.44 inches in width, installation clearance should be confirmed against the available envelope in the target application.

SKU: 02-137255-1

Supplier Part Number (MPN): 02-137255-1

Alternate Part Numbers: 3520V30A886AA22R

Specifications

Brand Vickers by Danfoss	Cartridge Type 22 Design	Dimensions 14.9 in L x 10.44 in W x 8.4 in H	Displacement 5.9 cu-in Shaft, 1.7 cu-in Cover	Drive Shaft Type Keyed	Flow Rate 30 gpm Shaft, 8 gpm Cover	Housing Material Iron	Maximum Operating Pressure 2500 psi	Mounting Type Flanged	Outlet Post From CVR End Outlet 1: Opposite Inlet, Outlet 2: 135 deg CCW From Inlet	Outlet Size 3/4 in, 1-1/4 in	Outlet Type Threaded	Port Connection Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged	Rotation Direction Clockwise	Seal Material Buna-N	Seal Type Standard	Series 3520 Series	Vane Type Fixed Displacement and Balanced

Product Questions & Answers (2)

Question by: Frank R on Jun 18, 2025, 4:00 PM

What kind of machines does this double vane pump work with? I got a metal cutting machine that needs a new one.

Answer by: Customer Support on Jun 20, 2025, 6:52 AM

This Vickers pump is used in metal cutting equipment, plastic injection molding machinery, dump trucks, and wheel loaders. It's also rated for oil and gas applications.

Question by: Roy S on Dec 24, 2025, 6:09 AM

running a plastic injection molding setup and need something that can keep up with mid-to-high flow demands without screaming loud all day -- does this pump handle that kind of work?

Answer by: Customer Support on Dec 25, 2025, 3:08 PM

Continuous-duty environments like injection molding are exactly what this pump was built around. The intra-vane cartridge design keeps noise down compared to conventional vane pump configurations, and volumetric efficiency stays strong under sustained load. At roughly 121 litres per minute, it delivers enough flow for mid-to-high demand circuits without being undersized for the job.
