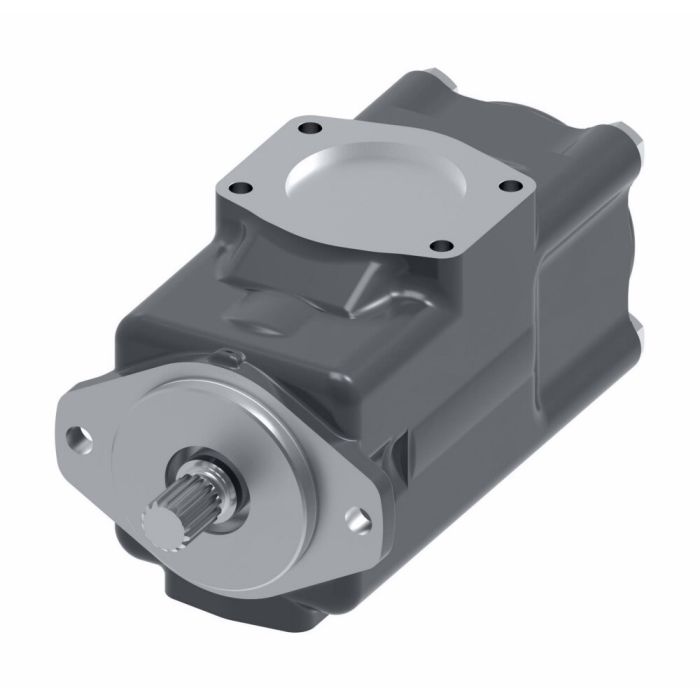

main product photo

VICKERS 3520V30A12-1CC22R

Ask A Question

Description & Features

Designed for demanding industrial fluid power applications, the Vickers 3520V30A12-1CC22R is a double vane pump from the Vickers V Series, manufactured under the Vickers brand by Danfoss/Eaton. The cast iron housing provides durability across continuous-duty cycles, while Buna-N seals offer reliable compatibility with standard hydraulic oils.

Built around an intra-vane cartridge design, this pump delivers consistent volumetric efficiency with reduced operating noise, practical advantages in environments such as metal cutting machinery, plastic injection molding equipment, dump trucks, and wheel loaders. A flow rate of approximately 121.2 litres per minute supports medium-to-high demand hydraulic circuits in these settings.

Part of the VHO series, this pump is a dependable replacement or upgrade component for existing Vickers vane pump installations across oil and gas and mobile equipment applications.

SKU: 02-137261-3

Supplier Part Number (MPN): 02-137261-3

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
14.9 in L x 10.44 in W x 8.4 in H
Displacement
5.9 cu-in Shaft, 2.5 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
30 gpm Shaft, 12 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Post From CVR End
Outlet 1: Inline with Inlet, Outlet 2: 45 deg CW From Inlet
Outlet Size
3/4 in, 1-1/4 in
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Clockwise
Seal Material
Buna-N
Seal Type
Standard
Series
3520 Series
Vane Type
Fixed Displacement and Balanced

Similar Products

Model Number Displacement Flow Rate Dimensions Price Action
VICKERS 3520V25A2 1CC22R

02-137234-3

4.9 cu-in Shaft, 0.43 cu-in Cover

25 gpm Shaft, 2 gpm Cover

404.622 mm L x 265.176 mm W x 215.9 mm H

VICKERS-3520V25A2 1AB22R

02-137234-A

4.9 cu-in Shaft, 0.43 cu-in Cover

25 gpm Shaft, 2 gpm Cover

15.05 in L x 8.38 in W x 6.4 in H

VICKERS 3520V25A8 1AA22R

02-137238-1

4.9 cu-in Shaft, 1.7 cu-in Cover

25 gpm Shaft, 8 gpm Cover

14.9 in L x 10.44 in W x 8.4 in H

VICKERS 3520V25A8 1CC22R

02-137238-3

4.9 cu-in Shaft, 1.7 cu-in Cover

25 gpm Shaft, 8 gpm Cover

378.46 mm L x 265.176 mm W x 213.36 mm H

VICKERS 3520V25A11 1AA22R

02-137243-1

4.9 cu-in Shaft, 2.2 cu-in Cover

25 gpm Shaft, 11 gpm Cover

14.9 in L x 10.44 in W x 8.4 in H

VICKERS 3520V25A11-1CC22R

02-137243-3

4.9 cu-in Shaft, 2.2 cu-in Cover

25 gpm Shaft, 11 gpm Cover

14.9 in L x 10.44 in W x 8.4 in H

VICKERS 3520V25A12 1AA22R

02-137246-1

4.9 cu-in Shaft, 2.5 cu-in Cover

25 gpm Shaft, 12 gpm Cover

14.9 in L x 10.44 in W x 8.4 in H

VICKERS 3520V25A12-1CC22R

02-137246-3

4.9 cu-in Shaft, 2.5 cu-in Cover

25 gpm Shaft, 12 gpm Cover

14.9 in L x 10.44 in W x 8.4 in H

VICKERS 3520V25A14 1AA22R

02-137248-1

4.9 cu-in Shaft, 2.8 cu-in Cover

25 gpm Shaft, 14 gpm Cover

14.9 in L x 10.44 in W x 8.4 in H

VICKERS 3520V25A14-1CC22R

02-137248-3

4.9 cu-in Shaft, 2.8 cu-in Cover

25 gpm Shaft, 14 gpm Cover

378.46 mm L x 265.176 mm W x 213.36 mm H

VICKERS 3520V30A5 1AA22R

02-137251-1

5.9 cu-in Shaft, 1.1 cu-in Cover

30 gpm Shaft, 5 gpm Cover

14.9 in L x 10.44 in W x 8.4 in H

VICKERS 3520V30A5-1CC22R

02-137251-3

5.9 cu-in Shaft, 1.1 cu-in Cover

30 gpm Shaft, 5 gpm Cover

378.46 mm L x 265.176 mm W x 213.36 mm H

VICKERS 3520V30A5 1DD22R

02-137251-4

5.9 cu-in Shaft, 1.1 cu-in Cover

30 gpm Shaft, 5 gpm Cover

14.9 in L x 10.44 in W x 8.4 in H

VICKERS 3520V30A8 1AA22R

02-137254-1

5.9 cu-in Shaft, 1.7 cu-in Cover

30 gpm Shaft, 8 gpm Cover

14.9 in L x 10.44 in W x 8.4 in H

VICKERS 3520V30A8 1BB22R

02-137254-2

5.9 cu-in Shaft, 1.7 cu-in Cover

30 gpm Shaft, 8 gpm Cover

14.9 in L x 10.44 in W x 8.4 in H

VICKERS 3520V30A8-1CC22R

02-137254-3

5.9 cu-in Shaft, 1.7 cu-in Cover

30 gpm Shaft, 8 gpm Cover

378.46 mm L x 265.176 mm W x 213.36 mm H

VICKERS 3520V30A8 1DD22R

02-137254-4

5.9 cu-in Shaft, 1.7 cu-in Cover

30 gpm Shaft, 8 gpm Cover

15.05 in L x 8.38 in W x 6.4 in H

VICKERS-3520V30A8 1CB22R

02-137254-P

5.9 cu-in Shaft, 1.7 cu-in Cover

30 gpm Shaft, 8 gpm Cover

15.05 in L x 8.38 in W x 6.4 in H

VICKERS-3520V30A8 1DC22R

02-137254-W

5.9 cu-in Shaft, 1.7 cu-in Cover

30 gpm Shaft, 8 gpm Cover

404.622 mm L x 265.176 mm W x 215.9 mm H

VICKERS 3520V30A14 1AA22R

02-137264-1

5.9 cu-in Shaft, 2.8 cu-in Cover

30 gpm Shaft, 14 gpm Cover

14.9 in L x 10.44 in W x 8.4 in H

VICKERS 3520V30A14 1BB22R

02-137264-2

5.9 cu-in Shaft, 2.8 cu-in Cover

30 gpm Shaft, 14 gpm Cover

15.05 in L x 8.38 in W x 6.4 in H

VICKERS 3520V30A14-1CC22R

02-137264-3

5.9 cu-in Shaft, 2.8 cu-in Cover

30 gpm Shaft, 14 gpm Cover

14.9 in L x 10.44 in W x 8.4 in H

VICKERS 3520V35A5 1AA22R

02-137265-1

6.8 cu-in Shaft, 1.1 cu-in Cover

35 gpm Shaft, 5 gpm Cover

14.9 in L x 10.44 in W x 8.4 in H

VICKERS 3520V35A5 1BB22R

02-137265-2

6.8 cu-in Shaft, 1.1 cu-in Cover

35 gpm Shaft, 5 gpm Cover

15.05 in L x 8.38 in W x 6.4 in H

VICKERS 3520V35A5-1CC

02-137265-3

6.8 cu-in Shaft, 1.1 cu-in Cover

35 gpm Shaft, 5 gpm Cover

378.46 mm L x 265.176 mm W x 213.36 mm H

VICKERS-3520V35A5 1BA22R

02-137265-G

6.8 cu-in Shaft, 1.1 cu-in Cover

35 gpm Shaft, 5 gpm Cover

15.05 in L x 8.38 in W x 6.4 in H

VICKERS 3520V35A5 1DC22R

02-137265-W

6.8 cu-in Shaft, 1.1 cu-in Cover

35 gpm Shaft, 5 gpm Cover

378.46 mm L x 265.176 mm W x 213.36 mm H

VICKERS 3520V35A8-1CC22R

02-137267-3

6.8 cu-in Shaft, 1.7 cu-in Cover

35 gpm Shaft, 8 gpm Cover

378.46 mm L x 265.176 mm W x 213.36 mm H

VICKERS-3520V35A8 1AB22R

02-137267-A

6.8 cu-in Shaft, 1.7 cu-in Cover

35 gpm Shaft, 8 gpm Cover

382.27 mm L x 212.852 mm W x 162.56 mm H

VICKERS 3520V35A8 1BA22R

02-137267-G

6.8 cu-in Shaft, 1.7 cu-in Cover

35 gpm Shaft, 8 gpm Cover

15.05 in L x 8.38 in W x 6.4 in H

VICKERS-3520V35A8 1BD22R

02-137267-J

6.8 cu-in Shaft, 1.7 cu-in Cover

35 gpm Shaft, 8 gpm Cover

15.05 in L x 8.38 in W x 6.4 in H

VICKERS 3520V35A11 1AA22R

02-137270-1

6.8 cu-in Shaft, 2.2 cu-in Cover

35 gpm Shaft, 11 gpm Cover

378.46 mm L x 265.176 mm W x 213.36 mm H

VICKERS 3520V35A14 1AA22R

02-137272-1

6.8 cu-in Shaft, 2.8 cu-in Cover

35 gpm Shaft, 14 gpm Cover

378.46 mm L x 265.176 mm W x 213.36 mm H

VICKERS 3520V35A14-1CC22R

02-137272-3

6.8 cu-in Shaft, 2.8 cu-in Cover

35 gpm Shaft, 14 gpm Cover

15.93 in L x 10.44 in W x 8.5 in H

VICKERS 3520V38A2-1CC22R

02-137273-3

7.4 cu-in Shaft, 0.43 cu-in Cover

38 gpm Shaft, 2 gpm Cover

15.05 in L x 8.38 in W x 6.4 in H

VICKERS 3520V38A5 1AA22R

02-137274-1

7.4 cu-in Shaft, 1.1 cu-in Cover

38 gpm Shaft, 5 gpm Cover

378.46 mm L x 265.176 mm W x 213.36 mm H

VICKERS-3520V38A5 1AD22R

02-137274-C

7.4 cu-in Shaft, 1.1 cu-in Cover

38 gpm Shaft, 5 gpm Cover

15.05 in L x 8.38 in W x 6.4 in H

VICKERS 3520V38A5 1CB22R

02-137274-P

7.4 cu-in Shaft, 1.1 cu-in Cover

38 gpm Shaft, 5 gpm Cover

15.05 in L x 8.38 in W x 6.4 in H

VICKERS 3520V38A8 1AA22R

02-137278-1

7.4 cu-in Shaft, 1.7 cu-in Cover

38 gpm Shaft, 8 gpm Cover

14.9 in L x 10.44 in W x 8.4 in H

VICKERS 3520V38A8 1BB22R

02-137278-2

7.4 cu-in Shaft, 1.7 cu-in Cover

38 gpm Shaft, 8 gpm Cover

14.9 in L x 10.44 in W x 8.4 in H

VICKERS 3520V38A8-1CC22R

02-137278-3

7.4 cu-in Shaft, 1.7 cu-in Cover

38 gpm Shaft, 8 gpm Cover

14.9 in L x 10.44 in W x 8.4 in H

VICKERS 3520V38A8 1DD22R

02-137278-4

7.4 cu-in Shaft, 1.7 cu-in Cover

38 gpm Shaft, 8 gpm Cover

14.9 in L x 10.44 in W x 8.4 in H

VICKERS-3520V38A8 1BA22R

02-137278-G

7.4 cu-in Shaft, 1.7 cu-in Cover

38 gpm Shaft, 8 gpm Cover

15.05 in L x 8.38 in W x 6.4 in H

VICKERS 3520V38A11 1AA22R

02-137282-1

7.4 cu-in Shaft, 2.2 cu-in Cover

38 gpm Shaft, 11 gpm Cover

15.05 in L x 8.38 in W x 6.4 in H

VICKERS 3520V38A11 1BB22R

02-137282-2

7.4 cu-in Shaft, 2.2 cu-in Cover

38 gpm Shaft, 11 gpm Cover

15.05 in L x 8.38 in W x 6.4 in H

VICKERS 3520V38A11-1CC22R

02-137282-3

7.4 cu-in Shaft, 2.2 cu-in Cover

38 gpm Shaft, 11 gpm Cover

378.46 mm L x 265.176 mm W x 213.36 mm H

VICKERS 3520V35A12 1AA22R

02-137285-1

6.8 cu-in Shaft, 2.5 cu-in Cover

35 gpm Shaft, 12 gpm Cover

15.05 in L x 8.38 in W x 6.4 in H

VICKERS 3520V38A12 1AA22R

02-137286-1

7.4 cu-in Shaft, 2.5 cu-in Cover

38 gpm Shaft, 12 gpm Cover

14.9 in L x 10.44 in W x 8.4 in H

VICKERS 3520V38A14 1AA22R

02-137288-1

7.4 cu-in Shaft, 2.8 cu-in Cover

38 gpm Shaft, 14 gpm Cover

14.9 in L x 10.44 in W x 8.4 in H

VICKERS 3520V38A14 1BB22R

02-137288-2

7.4 cu-in Shaft, 2.8 cu-in Cover

38 gpm Shaft, 14 gpm Cover

15.05 in L x 8.38 in W x 6.4 in H

VICKERS 3520V38A14-1CC22R

02-137288-3

7.4 cu-in Shaft, 2.8 cu-in Cover

38 gpm Shaft, 14 gpm Cover

15.05 in L x 8.38 in W x 6.4 in H

VICKERS 3520V35A2 1AA22R

02-142915-1

6.8 cu-in Shaft, 0.43 cu-in Cover

35 gpm Shaft, 2 gpm Cover

378.46 mm L x 265.176 mm W x 213.36 mm H

Product Questions & Answers (1)

Question by: Wade R on Apr 22, 2025, 7:47 AM
What kind of machinery does this pump typically go in?
Answer by: Customer Support on Apr 23, 2025, 3:57 PM
This vane pump is often found in metal cutting equipment, plastic injection molding setups, and even heavy-duty mobile equipment like dump trucks and wheel loaders.
