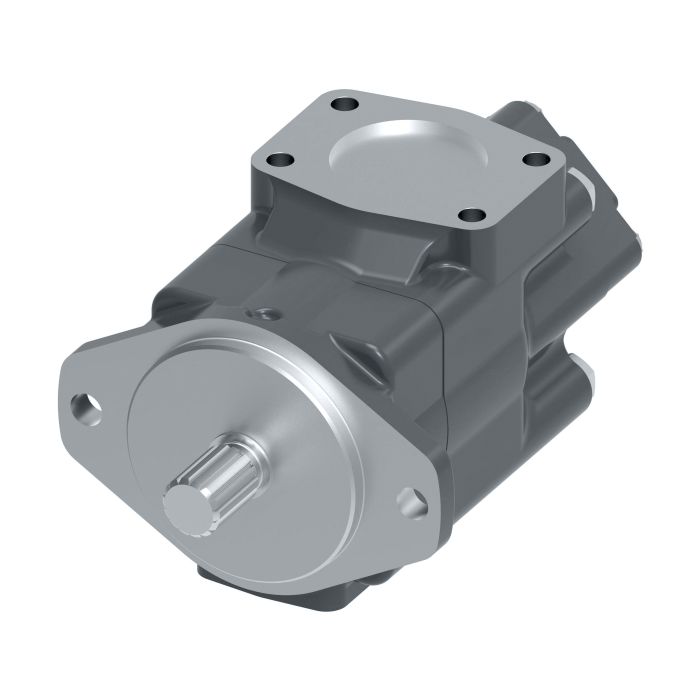

VICKERS-3520V35A5 1BA22R

Ask A Question

Description & Features

Designed for demanding industrial environments, the Vickers-3520V35A5 1BA22R vane pump offers exceptional performance across a wide range of applications. Constructed from durable cast iron, this pump is ideal for use in plastics machinery, press machines, die casting, machine tools, and more. Its innovative intra-vane cartridge design ensures excellent volumetric efficiency while significantly reducing noise, making it a reliable choice for maintaining operational efficiency.

With a flow rate of 121.23 liters per minute, this vane pump is engineered to deliver consistent hydraulic power in industries such as primary metal processing, pulp and paper, wood processing, oil and gas, marine, and general industrial sectors. The use of Buna-N seal materials further enhances its durability and performance under various operational conditions. As part of the trusted Vickers series, this pump combines robust construction with cutting-edge technology to meet the needs of complex industrial systems.

SKU: 02-137265-G

Supplier Part Number (MPN): 02-137265-G

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
15.05 in L x 8.38 in W x 6.4 in H
Displacement
6.8 cu-in Shaft, 1.1 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
35 gpm Shaft, 5 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Post From CVR End
Outlet 1: 90 deg CCW From Inlet, Outlet 2: 135 deg CCW From Inlet
Outlet Size
3/4 in, 1-1/4 in
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Clockwise
Seal Material
Buna-N
Seal Type
Standard
Series
3520 Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (1)

Question by: Terry C on Oct 7, 2025, 2:55 PM
Cast iron construction on a vane pump, does that hold up decent in a press machine environment or is that gonna be a problem long term?
Answer by: Customer Support on Oct 8, 2025, 6:01 PM
Cast iron is actually a solid choice for press machine applications. It handles the mechanical stress and vibration that comes with that kind of work better than lighter alloys. This pump is specifically listed for press machine use, so you're not pushing it outside its intended range. The Buna-N seals also help with durability under the kind of operating conditions a press environment throws at it.
