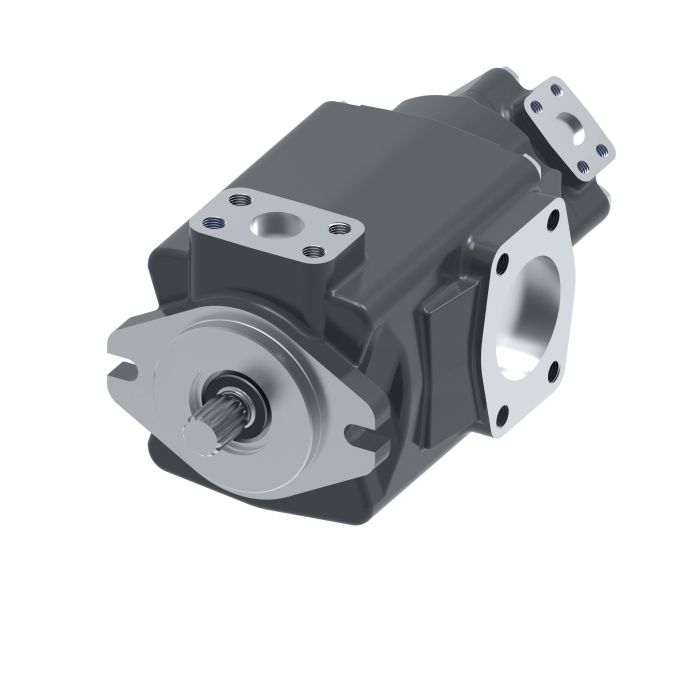

VICKERS 3520V35A5 1DC22R

Ask A Question

Description & Features

The VICKERS 3520V35A5 1DC22R is a vane pump designed for demanding applications, including metal cutting, oil and gas, plastic injection molding, dump trucks, and wheel loaders. Constructed from durable cast iron with Buna-N seals, this Vickers by Danfoss / Eaton V Series Vane Pump offers reliable performance in challenging industrial environments.

Featuring an innovative intra-vane cartridge design, this hydraulic pump is engineered to reduce noise and provide excellent volumetric efficiency. It offers a flow rate of 121.23383808 liters per minute.

SKU: 02-137265-W

Supplier Part Number (MPN): 02-137265-W

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
378.46 mm L x 265.176 mm W x 213.36 mm H
Displacement
6.8 cu-in Shaft, 1.1 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
35 gpm Shaft, 5 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Post From CVR End
Outlet 1: 90 deg CW From Inlet, Outlet 2: 45 deg CW From Inlet
Outlet Size
3/4 in, 1-1/4 in
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Clockwise
Seal Material
Buna-N
Seal Type
Standard
Series
3520 Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (2)

Question by: Billy M on Jan 26, 2026, 2:50 PM
what all can this pump be used for? got a wheel loader that needs a new hydraulic pump and trying to figure out if this Vickers unit would fit the bill
Answer by: Customer Support on Jan 28, 2026, 2:36 PM
Wheel loaders are actually one of the listed applications for this pump, along with dump trucks, metal cutting equipment, plastic injection molding machines, and oil and gas equipment. It's a cast iron vane pump built to hold up in demanding working conditions, so it's not a lightweight option by any stretch. The intra-vane cartridge design helps keep noise down and keeps volumetric efficiency solid, which matters when you're running it hard day in and day out.
Question by: Todd M on Jan 9, 2026, 10:16 AM
Will this thing hold up if it's run pretty much constantly?
Answer by: Customer Support on Jan 10, 2026, 7:22 PM
Constructed from cast iron and using Buna-N seals, this Vickers vane pump is built for demanding industrial environments.
