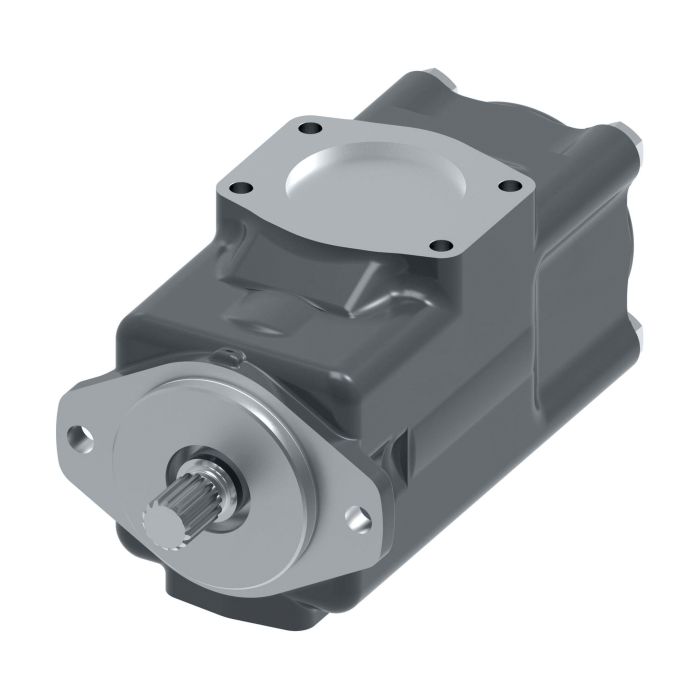

main product photo

VICKERS 3520V38A11-86CC22R

Ask A Question

Description & Features

The Vickers 3520V38A11-86CC22R vane pump is suitable for demanding hydraulic applications, including oil and gas, metal cutting, plastic injection molding, dump trucks, and wheel loaders. Its innovative intra-vane cartridge design contributes to reduced noise and excellent volumetric efficiency.

This Vickers vane pump is constructed from durable cast iron with Buna-N seals. It has a flow rate of 121.23383808 liters per minute. Its width measures 10.44 inches.

SKU: 02-137283-3

Supplier Part Number (MPN): 02-137283-3

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
404.622 mm L x 265.176 mm W x 215.9 mm H
Displacement
7.4 cu-in Shaft, 2.2 cu-in Cover
Drive Shaft Type
Keyed
Flow Rate
38 gpm Shaft, 11 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Post From CVR End
Outlet 1: Inline with Inlet, Outlet 2: 45 deg CW From Inlet
Outlet Size
3/4 in, 1-1/4 in
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Clockwise
Seal Material
Buna-N
Seal Type
Standard
Series
3520 Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (2)

Question by: Todd G on Sep 8, 2025, 6:51 AM
pump's got a 10.44 inch width on it, that seem right for a double vane setup in this size class?
Answer by: Customer Support on Sep 10, 2025, 6:51 AM
For a double vane pump in the 3520V series pulling around 121 liters per minute, that 10.44 inch width is right in line with what you'd expect. The tandem configuration naturally adds length compared to a single section unit, so if you're dropping this into an existing machine bay or replacing a previous double pump, measure your envelope carefully before committing. The cast iron housing is solid but it does add to the overall footprint.
Question by: Lyle K on Aug 15, 2025, 8:07 PM
What width is this Vickers pump?
Answer by: Customer Support on Aug 17, 2025, 6:49 PM
It's 10.44 inches wide.
