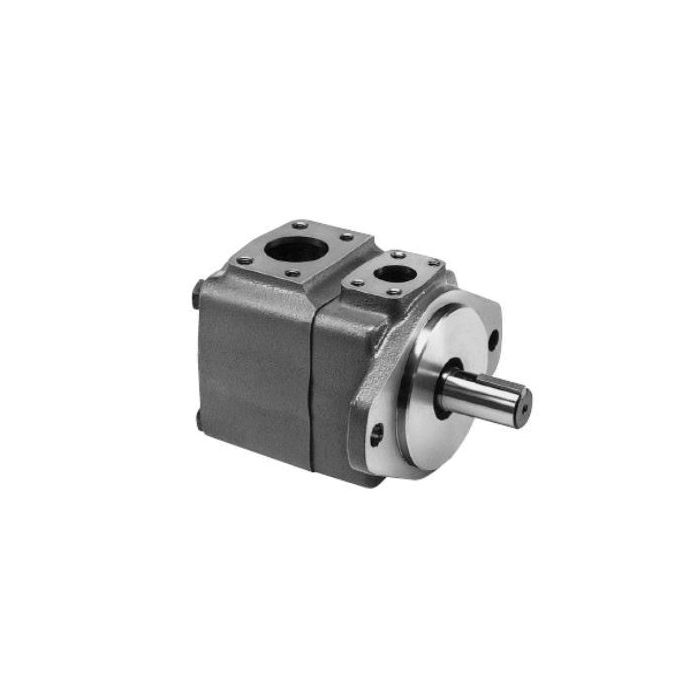

VICKERS 3520V38A12 1AA22R

Description & Features

A cast iron vane pump designed for demanding industrial fluid power applications, the Vickers 3520V38A12 1AA22R is part of the Vickers VHO Series and built to perform across a wide range of sectors including metal cutting, plastic injection molding, oil and gas, dump truck, and wheel loader equipment.

The pump features an intra-vane cartridge design that reduces operating noise while maintaining excellent volumetric efficiency. Buna-N seals are fitted as standard, making this unit well-suited for use with petroleum-based hydraulic fluids. Flow rate is rated at approximately 121.23 litres per minute, supporting high-demand hydraulic circuits.

Manufactured under the Vickers brand by Danfoss/Eaton, this pump reflects the engineering standards associated with the V Series product line and is a direct-replacement option for compatible systems already running Vickers vane pump configurations.

SKU: 02-137286-1

Supplier Part Number (MPN): 02-137286-1

Specifications

Brand Vickers by Danfoss	Cartridge Type 22 Design	Dimensions 14.9 in L x 10.44 in W x 8.4 in H	Displacement 7.4 cu-in Shaft, 2.5 cu-in Cover	Drive Shaft Type Square Keyed	Flow Rate 38 gpm Shaft, 12 gpm Cover	Housing Material Iron	Maximum Operating Pressure 2500 psi	Mounting Type Flanged	Outlet Post From CVR End Outlet 1: Opposite Inlet, Outlet 2: 135 deg CCW From Inlet	Outlet Size 3/4 in, 1-1/4 in	Outlet Type Threaded	Port Connection Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged	Rotation Direction Clockwise	Seal Material Buna-N	Seal Type Standard	Series 3520 Series	Vane Type Fixed Displacement and Balanced

Product Questions & Answers (2)

Question by: Connie B on Nov 19, 2025, 10:53 AM

Running a plastic injection molding setup and need a vane pump that ain't gonna sound like a jet engine all shift long. How's the noise situation on this one?

Answer by: Customer Support on Nov 21, 2025, 9:36 AM

Noise reduction was a real engineering priority with this pump. The intra-vane cartridge design is specifically what keeps operating sound levels down compared to conventional vane pump configurations. For injection molding environments where machines are already loud enough, that's a meaningful difference you'll notice over a full shift.

Question by: Lee M on Apr 8, 2025, 4:56 PM

Reckon this'll bolt right in where my old Vickers pump was?

Answer by: Customer Support on Apr 10, 2025, 6:38 AM

This Vickers 3520V38A12 1AA22R vane pump is designed as a direct replacement for existing Vickers V Series configurations. Verify your system's specifications to ensure compatibility.
